Symbologies
11 - 13

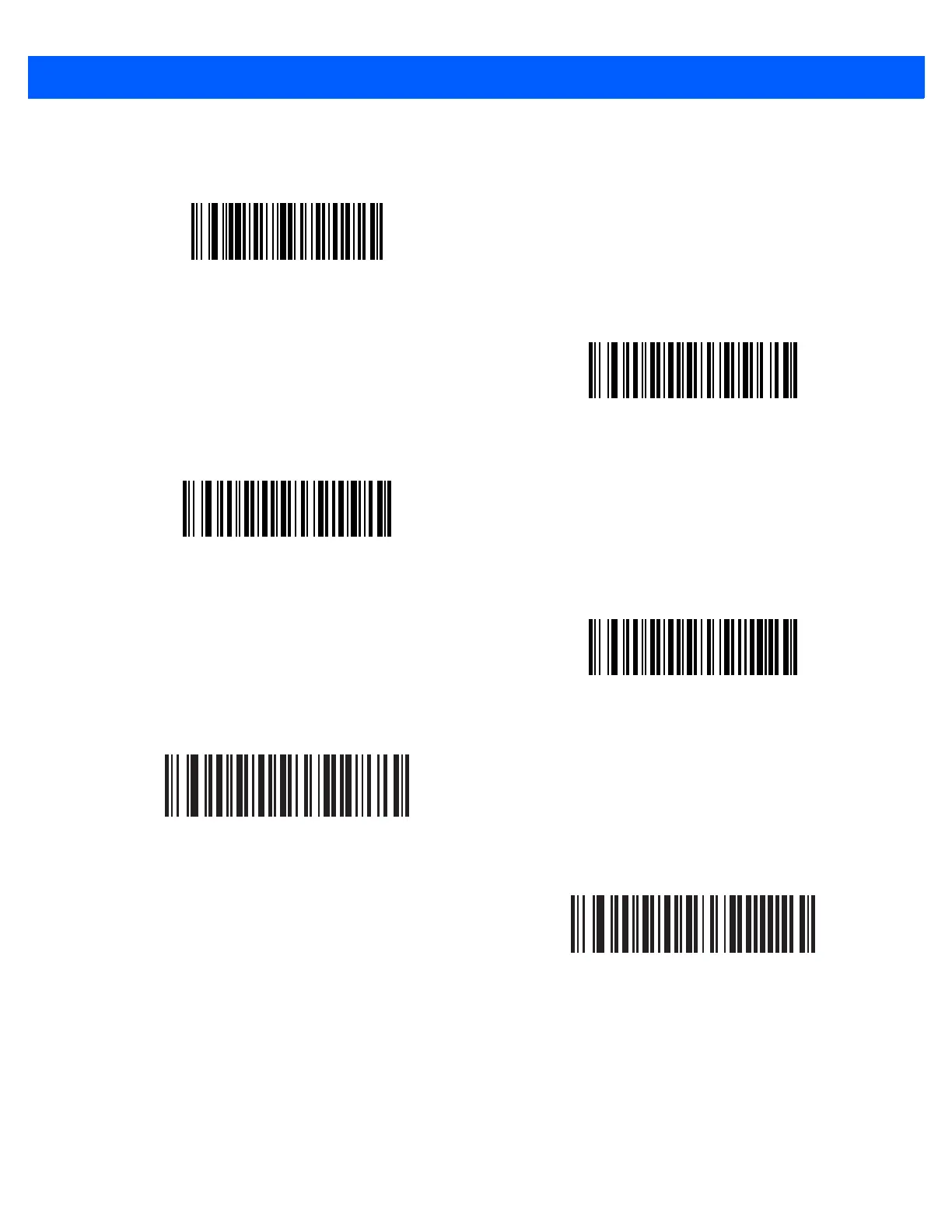

Decode UPC/EAN/JAN Supplementals (continued)
Decode UPC/EAN/JAN Only With Supplementals
(1)
*
Ignore Supplement
als
(0)
Autodiscriminate UPC/EAN/JAN
Supplement
als
(2)
Enable 378/379 Supplement
al Mode
(4)
Enable 978/979
Supplemental Mode
(5)
Enable 977 Supplement
al Mode
(7)
236
238
