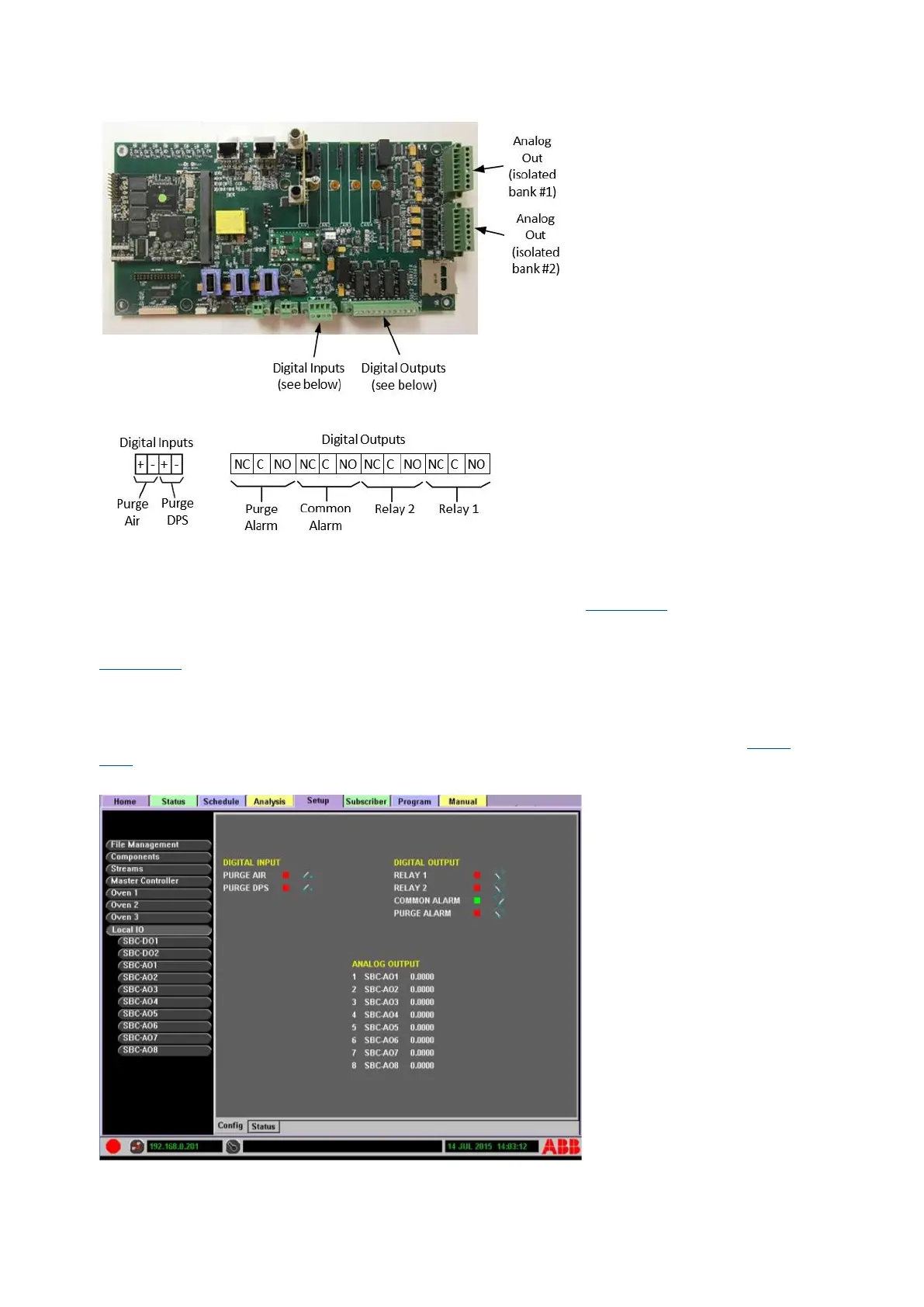

Figure 5-16: SBC PCB showing local input/output connections
5.9.1 Local input/output option
The local input option connections are Purge Air and Purge DPS (see Figure 5-16). These alarms are
not customer-configurable.
The local output option connections are located on the Single Board Computer (SBC) PCB, as shown in
Figure 5-16. These connections provide the primary analog and digital inputs and outputs.
Purge inputs and alarms on the SBC are not used in Oven with Integrated Controller installations.
5.9.2 Local output option setup
When the local output option is configured, the I/O Setup Tab displays the screen shown in Figure
5-17.
Figure 5-17: Local I/O Setup Display
