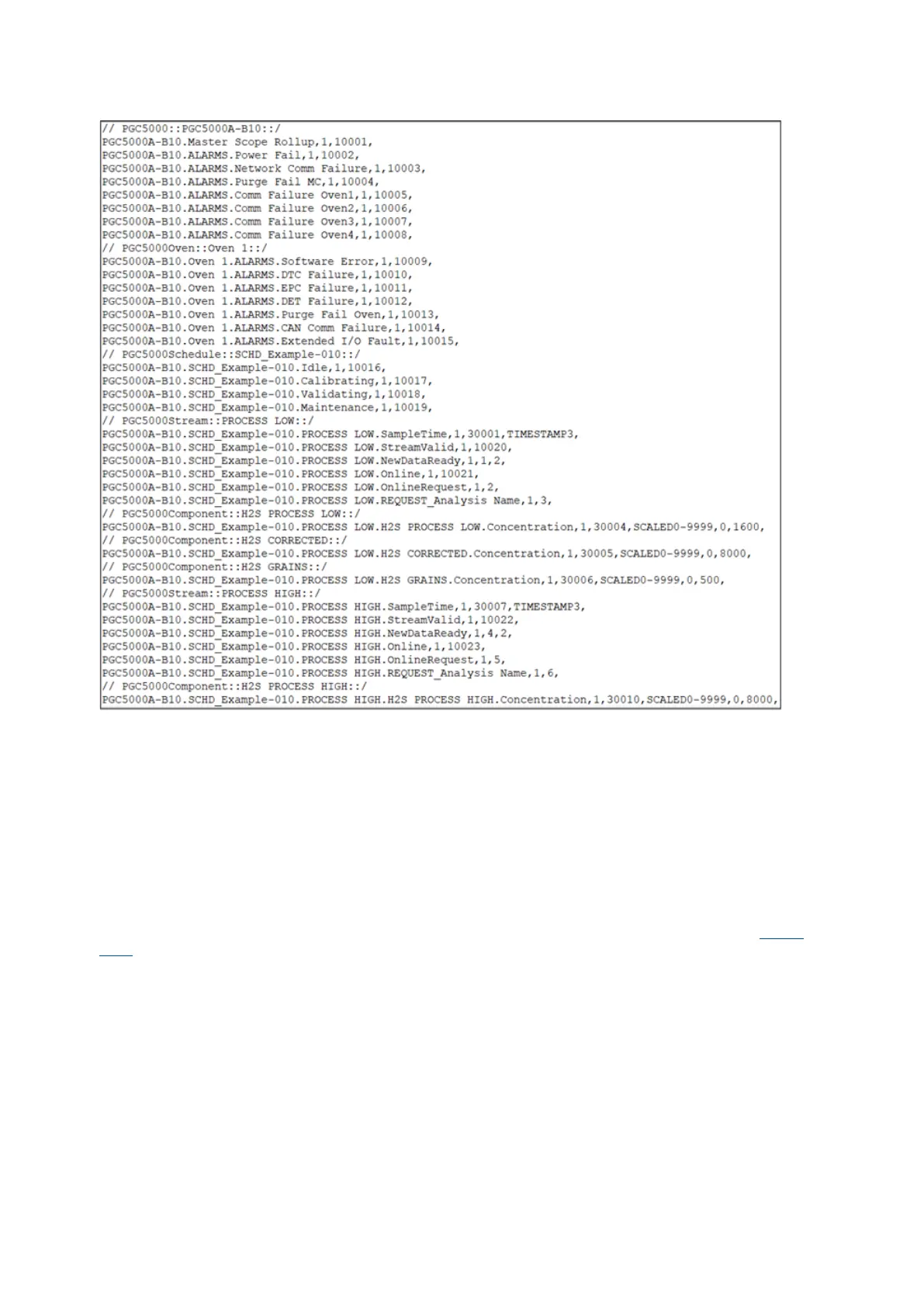

Figure 5-15: CSV file example
Transfer the file to the SBC. See the STAR Data Management System (DMS) Operating Instructions
for additional information.
The SBC provides direct MODBUS TCP connection.
5.8.6 OPC communication
Analyzer Tag names used by the OPC Server represent data from the analyzer. For any given
analyzer, there may be multiple analysis streams and/or components. The tag list defines the names
used and the types of data available for the device.
5.9 Input/output options
The PGC5000 Generation 2 analyzer offers input/output (I/O) options internal and external to the
Master Controller. The local input/output is available on the Single Board Computer PCB (see Figure
5-16). Additional input/output modules can be mounted internally on the DIN rail in the Master
Controller. Ovens with Integrated Controllers do not accept additional input/output modules.
An external input/output option is available if a very large number of inputs and/or outputs is needed,
or if additional input and/or output modules are needed with an Oven with Integrated Controller. This
external enclosure can also accommodate pneumatic stream switching valves, if more than 10 is
needed.
The input/output options are fully integrated with the analyzer’s local and remote user interfaces for
direct operation and programming.
