32 | PGC5000 GEN 2 | 892 J006 MNAH

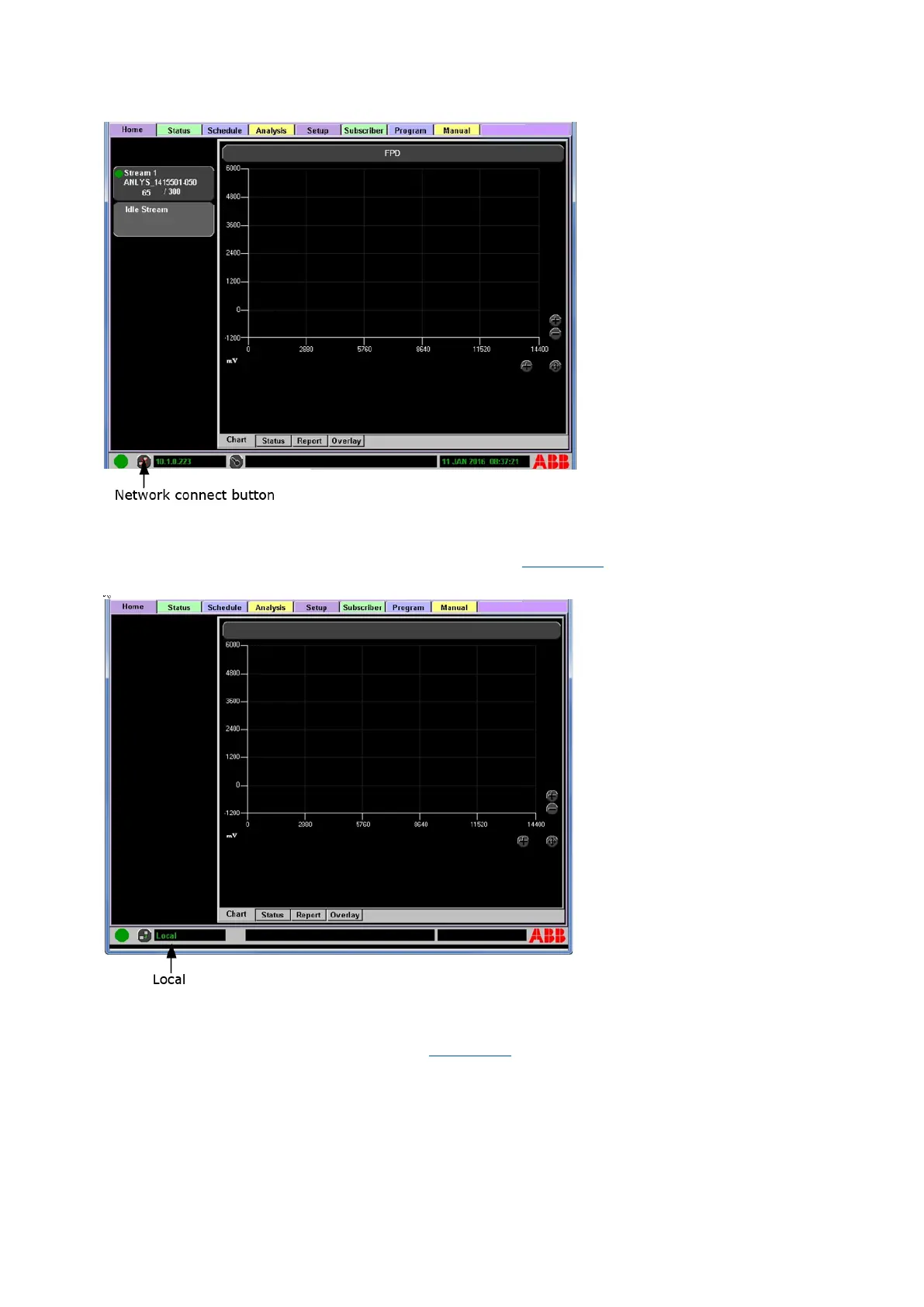

Figure 3-9: Home screen, showing IP address
If you call up the RUI by launching the RUI application from a shortcut or Windows folder, you will see
“Local” in the box next to the Network Connect button (see Figure 3-10).
Figure 3-10: Home screen, showing “Local”
3.7.3 Early versions of the analyzer
If you press the Network Connect button again, you will get the IP Address Dialog Box, which will
allow you to enter the desired IP address (see Figure 3-11) After you enter the desired IP address,
press Accept to save the entry or press Abort to retain the original settings.
