108 | PGC5000 GEN 2 | 892 J006 MNAH

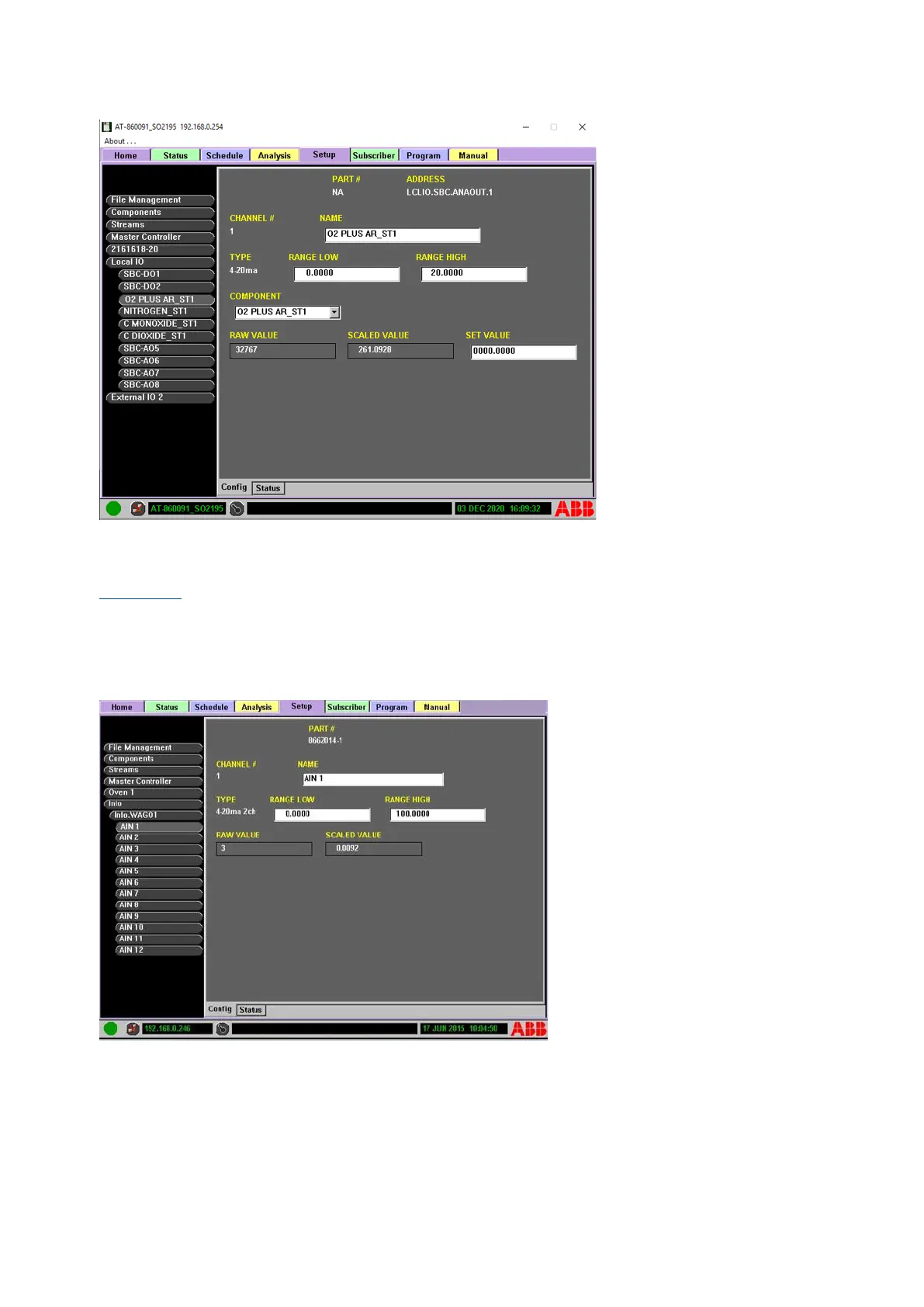

Figure 5-23: Local onboard AO
5.9.7 Analog input
Figure 5-24 illustrates the analog I/O display, with an analog input channel selected. The editable
areas are:
⎯ NAME: reference name, used for the button name
⎯ RANGE LOW: analog input low limit
⎯ RANGE HIGH: analog input high limit
Figure 5-24: Analog Input Display
5.10 External input/output option
The external I/O (EIO) option is housed in a separate enclosure and may include stream-switching
valves. It communicates with the SBC through a fiber optic CANbus communication link.
