Instrument Tour
AEROSET
®
Customer Training Guide 1-13
94858-103 — July 2003
The components behind the front doors are described in the following
tables.

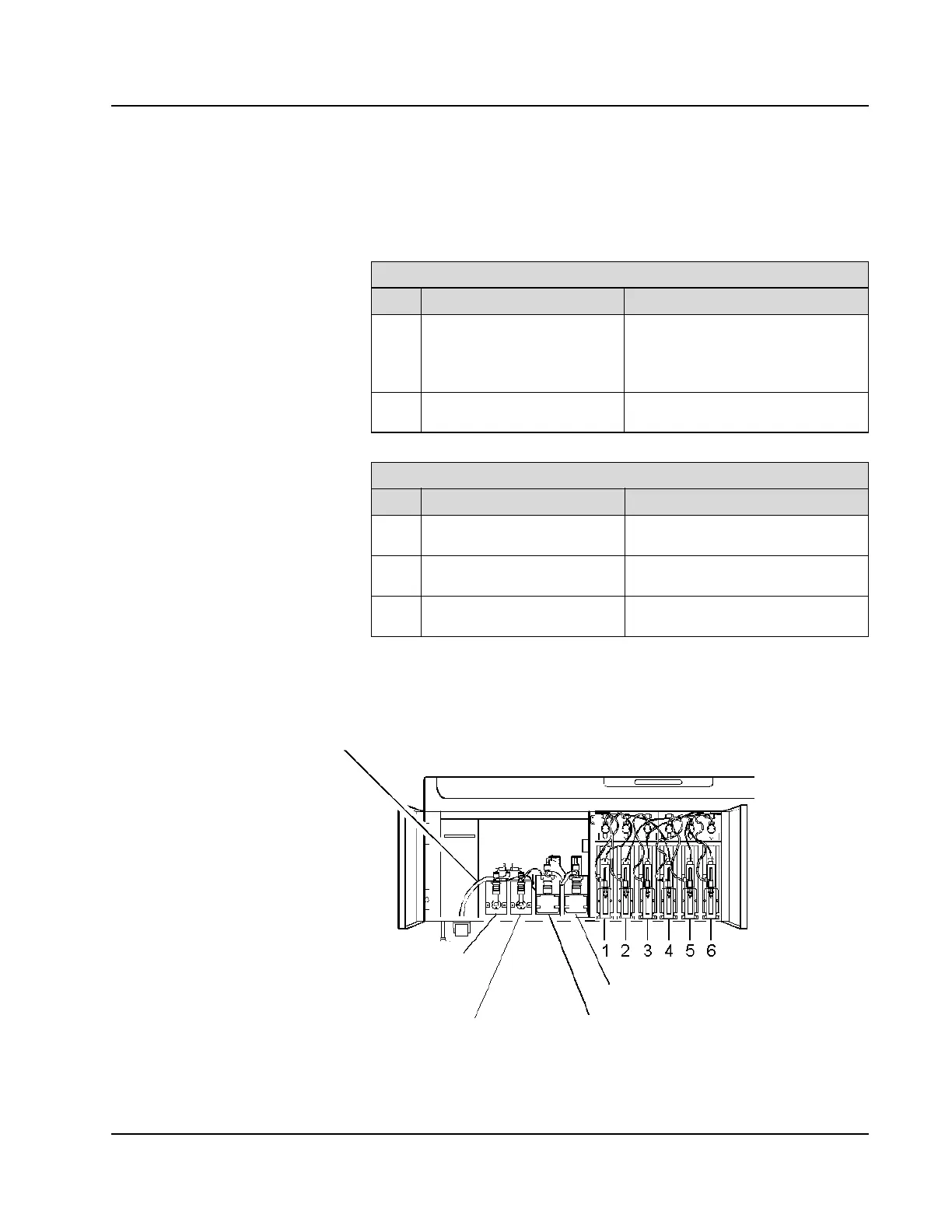

Figure 1.6: View Behind Front-Left and Front-Middle Doors
Behind the Front-Left Door
Item Component Description
1
High-Concentration Waste
Pumps
Performs the initial aspiration from
the cuvettes to remove the High-
Concentration Waste to a separate
container, if desired.
2
Probe Wash Pumps Used to wash the inside of the
Sample and Reagent Probes.
Behind the Front-Middle Door
Item Component Description
3
Sample Syringe Drives Performs sample aspiration and
dispense.
4
Reagent 1 Syringe Drives Performs Reagent 1 aspiration and
dispense.
5
Reagent 2 Syringe Drives Performs Reagent 2 aspiration and
dispense.
1 =
ample A
yringe Drive
2 = Reagent 1A Syringe Drive
3 = Reagent 2A Syringe Drive
4 = Sample B Syringe Drive
5 = Reagent 1B Syringe Drive
6 = Reagent 2B Syringe Drive
High-Concentration Waste
Drain Hose
High-
Concentration Waste
Pump (A)
High-Concentration
Waste Pump (B)
Probe Wash Pump (B)
Probe Wash Pump (A)
To Next Page
