Instrument Tour
AEROSET
®
Customer Training Guide 1-15
94858-103 — July 2003

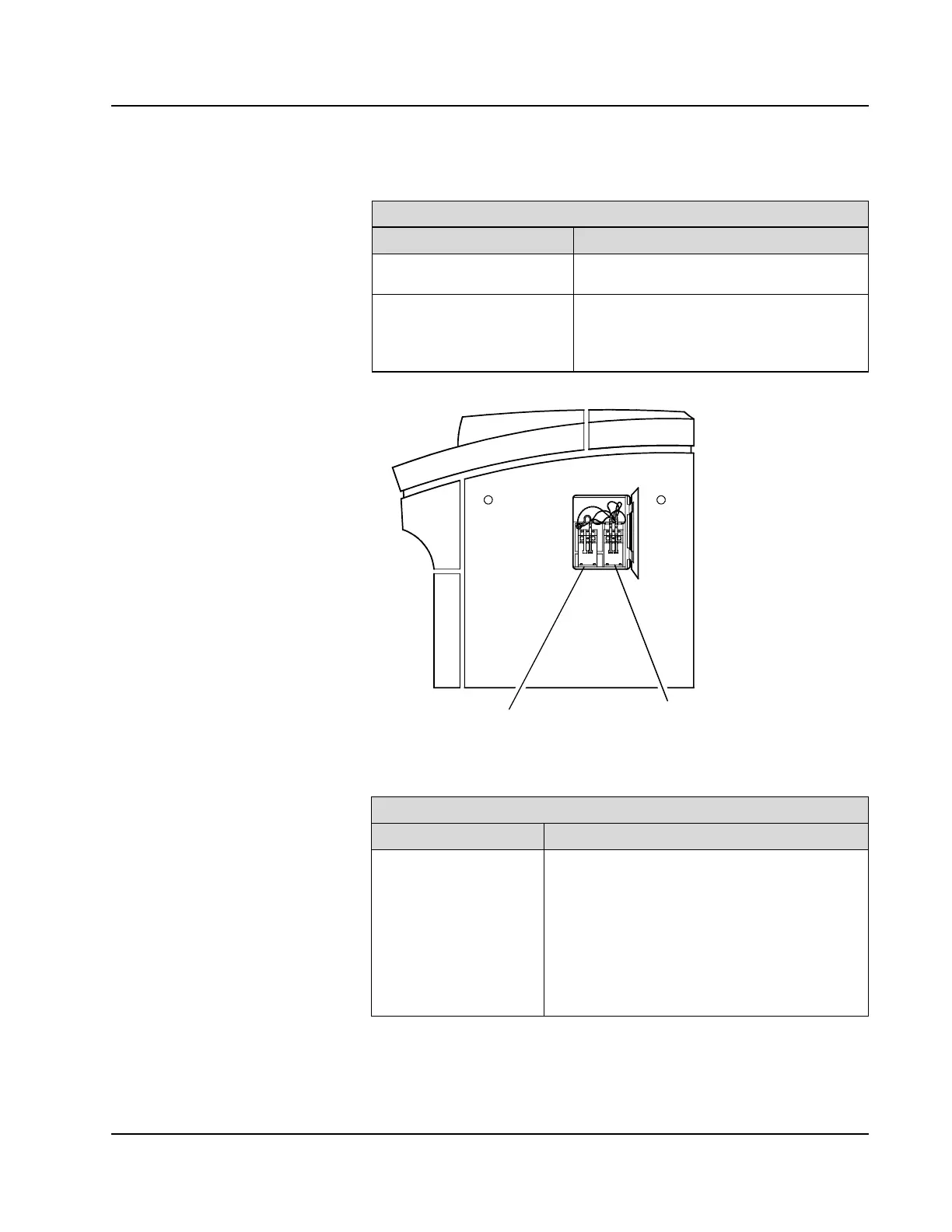

Figure 1.8: View Behind the ICT Pump Access Door
Behind the Right-Side Panel
Component Description
ICT™ Aspiration Pump Performs the aspiration of the samples and
ICT Reference Solution into the ICT Unit.
ICT Reference Solution Pump Moves ICT Reference Solution from the
Bulk Solution bottle, through the preheater
tubing in the incubator, to the cup beneath the
ICT Unit.
Left Side of Analyzer
Component Description
Rotary Power Control
Switch
Three position switch:
• ON - All components are Powered ON
• AUTO - System can Power ON/OFF
automatically at preset times, power is supplied
to the entire System
• OFF - Power is OFF to all components except
the refrigeration for the Reagent Supply
Centers
ICT Reference
Solution Pump
ICT Aspiration Pump
125621
