MAINTENANCE UTILITIES Screen
AEROSET
®
Customer Training Guide 11-17
94858-103 — July 2003
Rgt Area 1 and Rgt Area 2 Page
The Rgt Area 1 and Rgt Area 2 pages provide the same functionality for
the corresponding Reagent Arms, Reagent Supply Center segments,
reagent pump, and the reagent Bar Code Reader in the Reagent Supply
Center 1 and Reagent Supply Center 2.

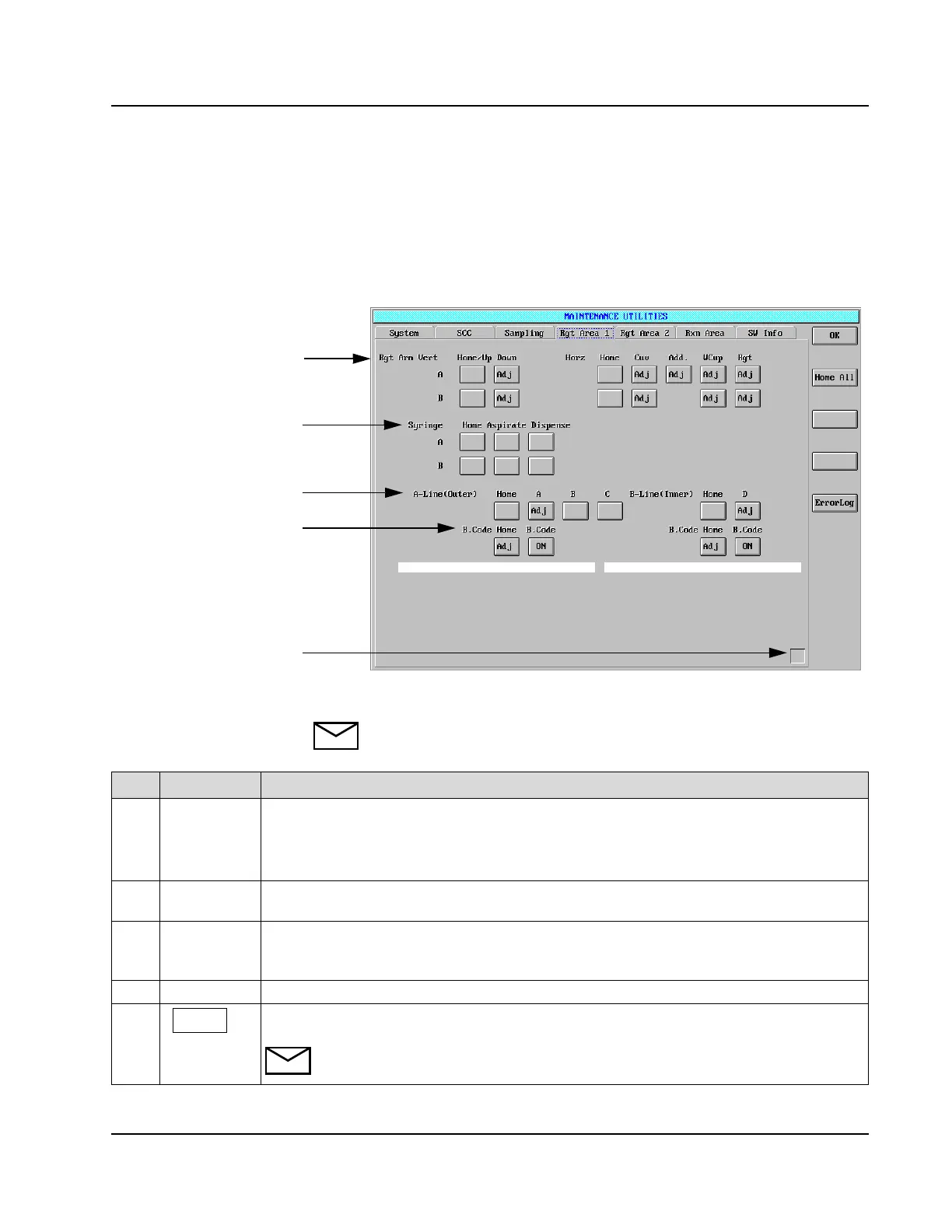

Figure 11.11: MAINTENANCE UTILITIES Screen, Rgt Area 1 Page
NOTE: Ensure each component is in the home position before
movement or adjustment.
Item Field Allows the Operator to…
1
Rgt (Reagent)
Arm
Move the Reagent Arm vertically and horizontally. The horizontal control allows the Reagent
Arm to be moved to the following positions:
Home, CUV (cuvette), Add. (Water Bath Additive dispense position for R1-A only), WCup
(Wash Cup), and Rgt (reagent).
2
Syringe Move the Reagent Syringe drive. The Operator may also request the pump to home, aspirate, or
dispense.
3
A-Line
(Outer) and B-
Line (Inner)
Home the outer or inner Reagent Supply Center segments.
4
B.Code Turn the Bar Code Reader ON.
5
This area displays a blue triangle when the System is busy. A green square displays when the
status is READY.
NOTE: When the System is busy, no further commands are acknowledged until the
original command is completed.
• Can test bar codes. Don’t see
selection unless reagent bar
codes are turned ON.
1
2
3
4
5
