ADPRO FastTrace by Xtralis Installation and User Manual
Doc 11168_12 31
Note: ALWAYS consult with the IT or Network Manager for the network BEFORE
physically connecting FastTrace to the network.
A network address is required for correct operation over a network. Both the FastTrace and the
PC running the VideoCentral software must have a unique TCP/IP address (referred to as the IP
address). A number of IP parameters may need to be entered to correctly identify a FastTrace on
a network.
Refer to Ethernet Properties on page 60 for details to configure the Ethernet Connection.
3.3 Audio
Audio functionality is provided via two connectors on the FastTrace. Audio options are only
available if the system has a sound card enabled. Audio to/from a remote site using VideoCentral
is half-duplex, meaning that audio is only allowable in one direction at a time.
3.3.1 Audio Switch Port
The Audio Switch port provides a number of functions on the FastTrace, these are:
• An audio output and an audio input connection
• A general relay
• Serial outputs
• Access Secure input

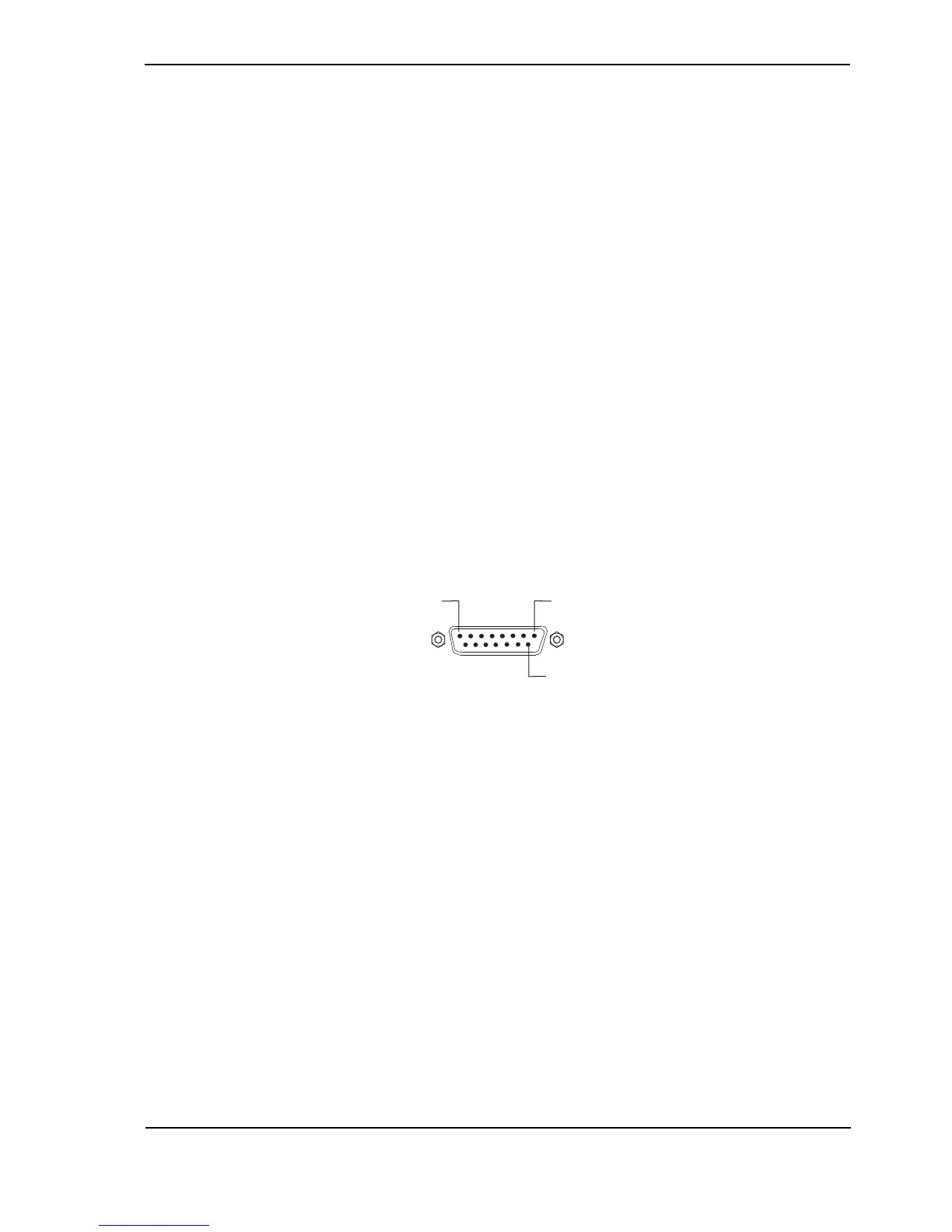

Figure 34: Audio D-Connector Pinouts
