ADPRO FastTrace by Xtralis Installation and User Manual
Doc 11168_12 67
PPP Password
Option: 20 characters maximum.
The Password that will be provided by PPP when negotiating a serial IP connection. It is only
required when PAP is enabled.
Note: The PPP Password is a function of the modem or TA and will also need to be set in
the device.
Nominal Data Rate (bits/sec)
Options: 8 kbps, 16 kbps, 32 kbps, 64 kbps, 128 kbps, Auto Detect.
Factory Default: Auto Detect
The Nominal Data Rate option is used by the FastTrace to maximise the data rate on the
communication link. It is different from the ‘Data Rate’ setting for the Modem / TA, in that
FastTrace attempts to send data at the specified nominal data rate at all times. This option helps
to provide consistency in the image transmission time of the system, especially when the line
quality of a communications link is unknown.
The Nominal Data Rate should be set to either auto detect or to the known speed of the
communications network. For example, use the ‘128 kbps’ option when connected via a Basic
Rate ISDN line.
Advanced Communication Properties
The Advanced Communication Properties option defines the Base Port Number used for
communications with the PC running VideoCentral software.

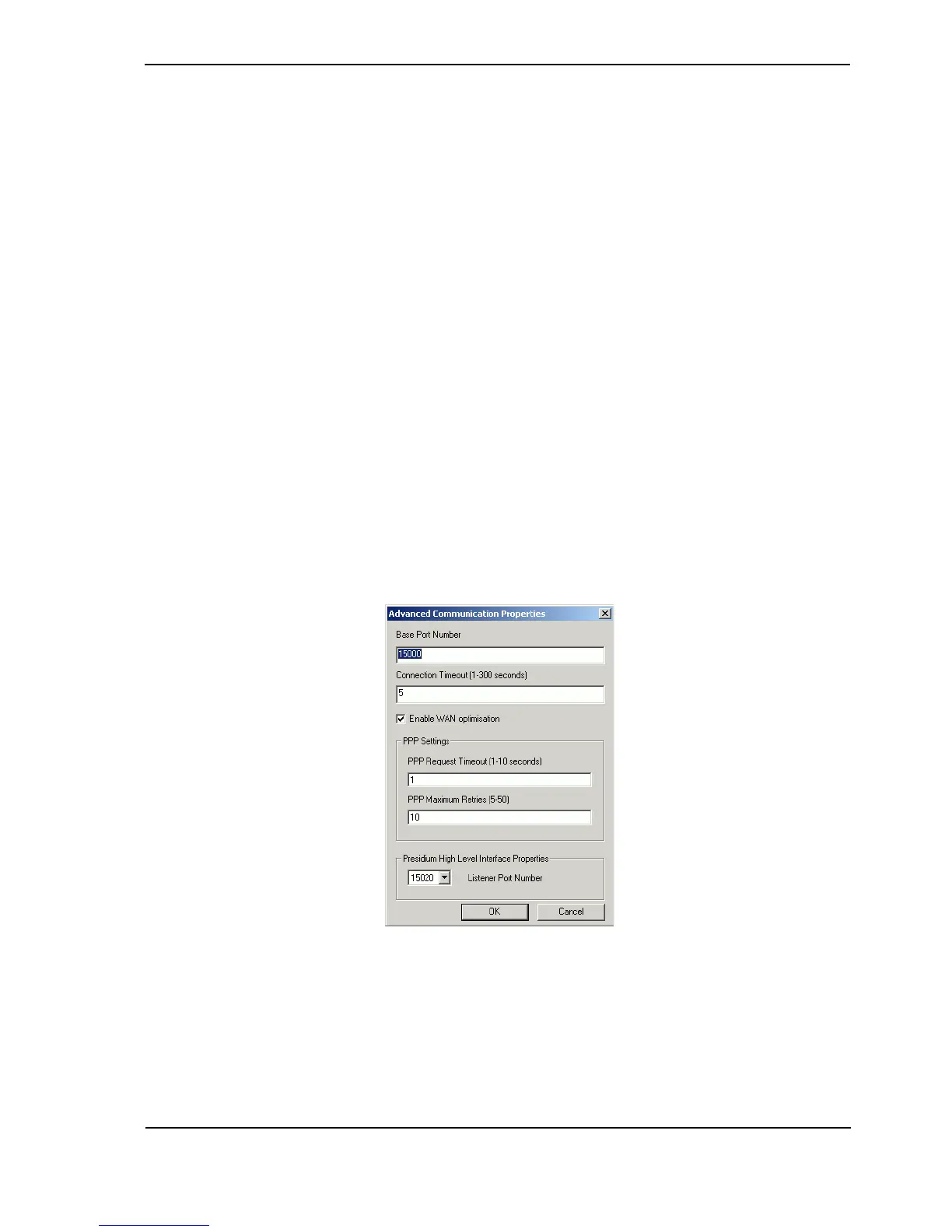

Figure 67: Advanced Communication Properties
