Installation and User Manual ADPRO FastTrace by Xtralis
42 Doc 11168_12

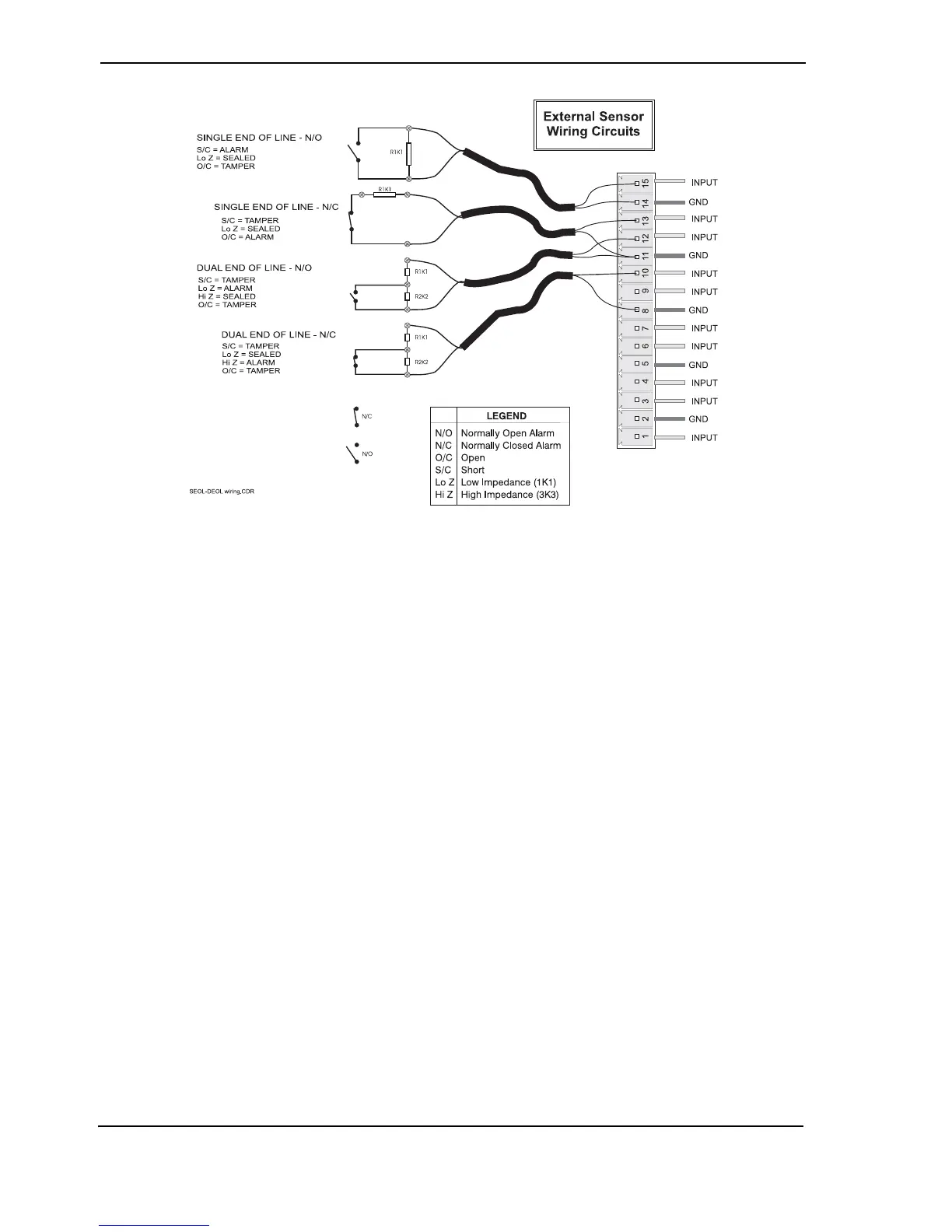

Figure 44: External Sensor Wiring Circuits
Please refer to “Specifications’ on page 129 for voltage requirements and considerations.
3.8 Control Outputs
FastTrace transmitters have 10 or 20 Control Outputs that can be controlled by a remote
operator using VideoCentral. The devices can be used to control operation of lights, gates /
doors and control equipment.
Note: Each Control Output can be set to be active (switch on) when an alarm event is
active on the corresponding channel or to respond to remote control via
VideoCentral.
The devices should not be used to directly connect to third party equipment. They are primarily
designed to drive relay contacts, which in turn control the third party equipment.
