ADPRO FastTrace by Xtralis Installation and User Manual

Doc 11168_12 47

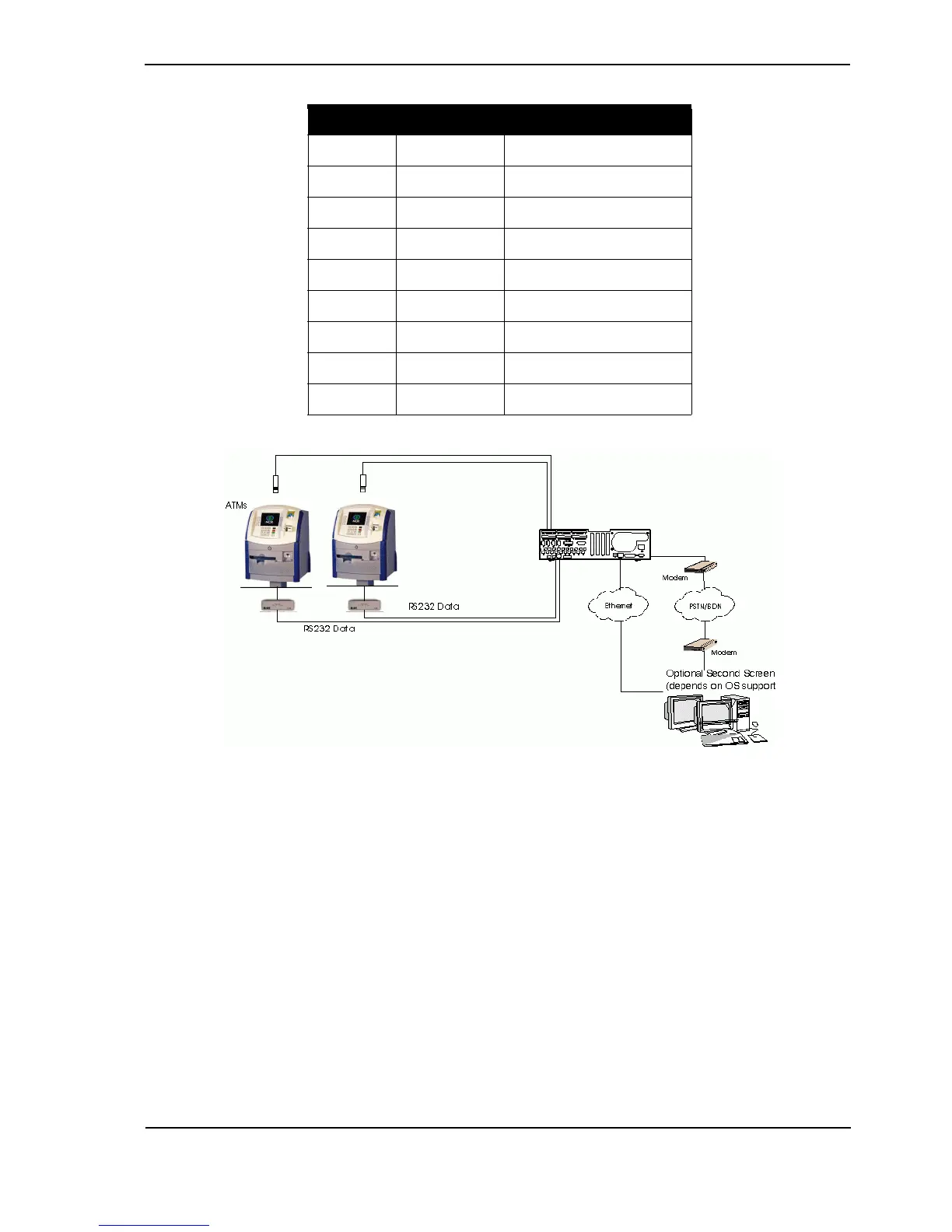

Table 9: General Purpose Serial Port Connections

Figure 52: Typical Configuration with ATM/EPOS

3.11 Data Connection

A single 9 way D connector is provided on the unit for data connection, such as Transparent

RS232. The transparent data capability provides the ability for the system to transfer data from a

device connected to a serial port on the VideoCentral PC to the data port on the FastTrace and

vice versa. The data connection supports baud rates of 1200, 2400, 4800, 9600, 19200, 38400

and 57600.

PIN Signal Description

1 DCD Carrier Detect

2 RXD Receive Data

3 TXD Transmit Data

4 DTR Data Terminal Ready

5 GND Ground

6 DSR Data Set Ready

7 RTS Request to send

8 CTS Clear to send

9 RI Ring Indicator
