Nickel catalyst assembly

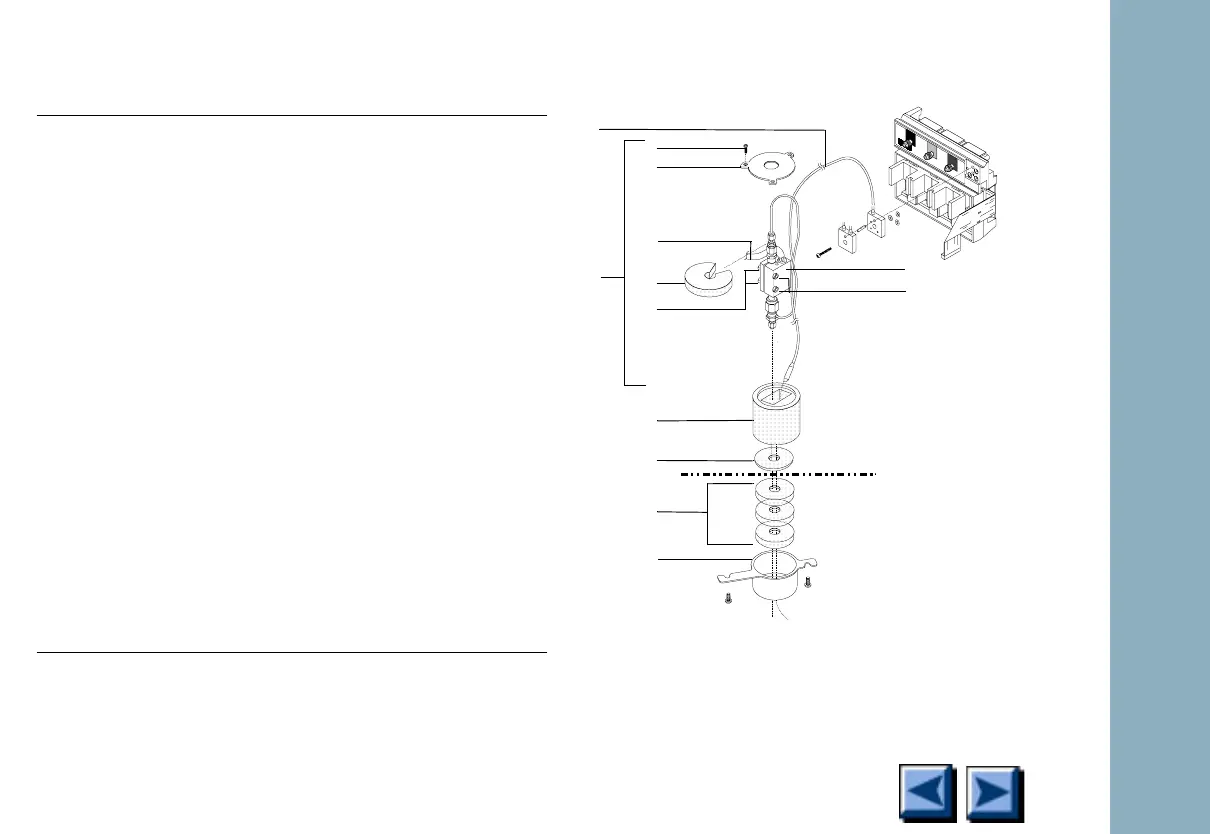

Figure 1-14. Nickel catalyst assembly
Description Part no. Qty.
1. Nickel catalyst assembly
G1580-61020 1
2. Screw—socket M4 × 20
0515-0038 2
3. Nickel catalyst heater/sensor
assembly
G1580-61160 1
4. Nickel catalyst H
2
mix FTG
weldment
G1580-80500 1
5. Nickel catalyst heater block 18900-20835 1
6. Nut—hex with lockwasher 0535-0043 2
7. Screws, Torx T-20, M4 × 12 mm
(captive)
1390-1023 3
8. Top cover plate
G1543-00085 1
9. Top insulation
G1543-00100 1
10. PP I P I n s u l a t i o n
G1543-00030 1
11. PPIP Bottom insulation
G1543-00070 1
12. Nut warmer insulation
19234-60715 3
13. Nut warmer cup
19234-60700 1
8
3
9
6
10
11
12
13
1
7
4
2
5
