Electronics

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 241

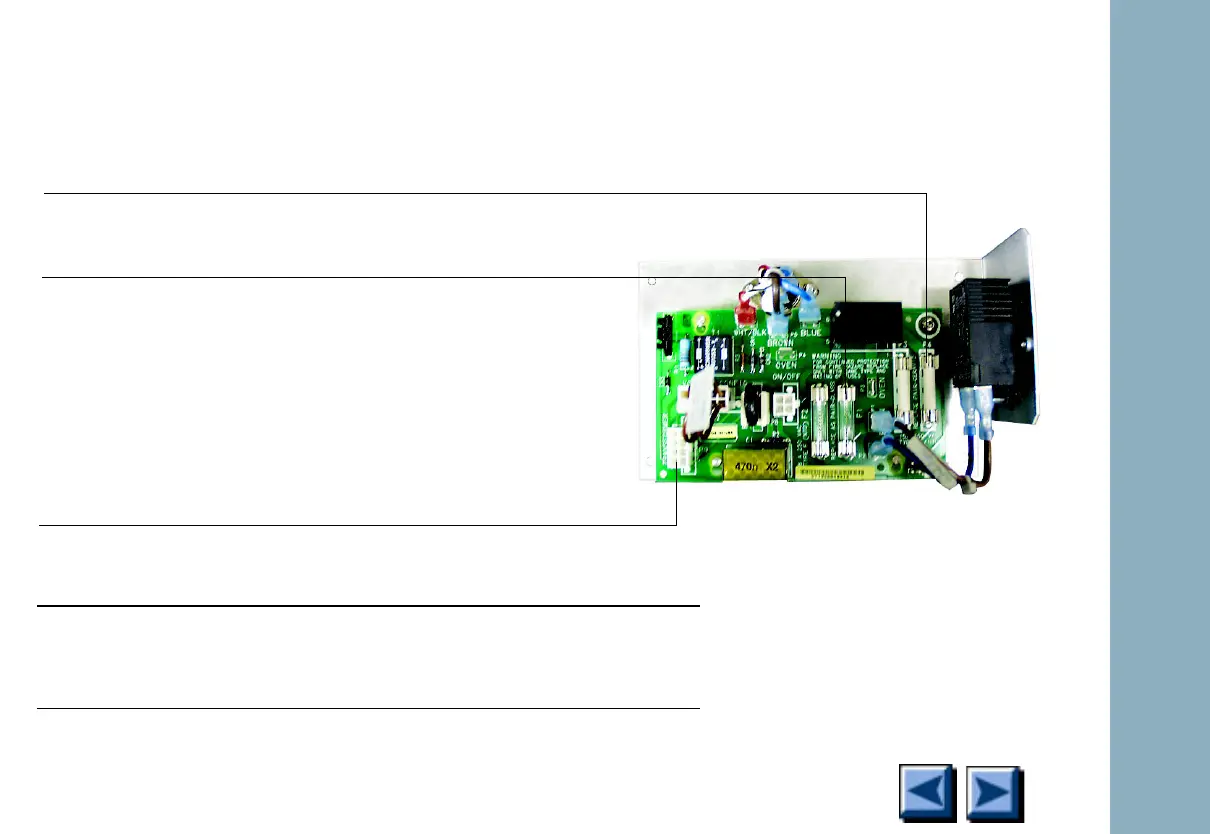

AC board (G2630-60040)

AC board assembly

Fuse, 6A, glass body, IEC Type F, nontime delay

Fuse, 15A, ceramic body, IEC Type F, nontime delay

G2630-60040

2110-0054

2110-0056

Voltage configuration plugs

Voltage

Frequency

(Hz)

Max. power

consumption

Dedicated power

line requirement Part number

100 V (± 10%) 48-66 1440 W 15 amp receptacle G2630-60740

120 V (± 10%) 48-66 1440 W 15 amp receptacle G2630-60830

230 V (± 10%) 48-66 2000 W 7.5 amp receptacle G2630-60840
