Oven

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 220

To install the oven heater shroud

1. Feed the oven heater wires used with the

previous shroud in through the back of the

oven, then place the oven heater shroud in

the oven.

2. Secure the oven heater shroud using three

chrome-plated T-20 Torx screws.

3. Feed the sensor cable through the hole in the

bottom of the oven.

4. Replace the insulation on the oven heater

wires and the heater/sensor cable.

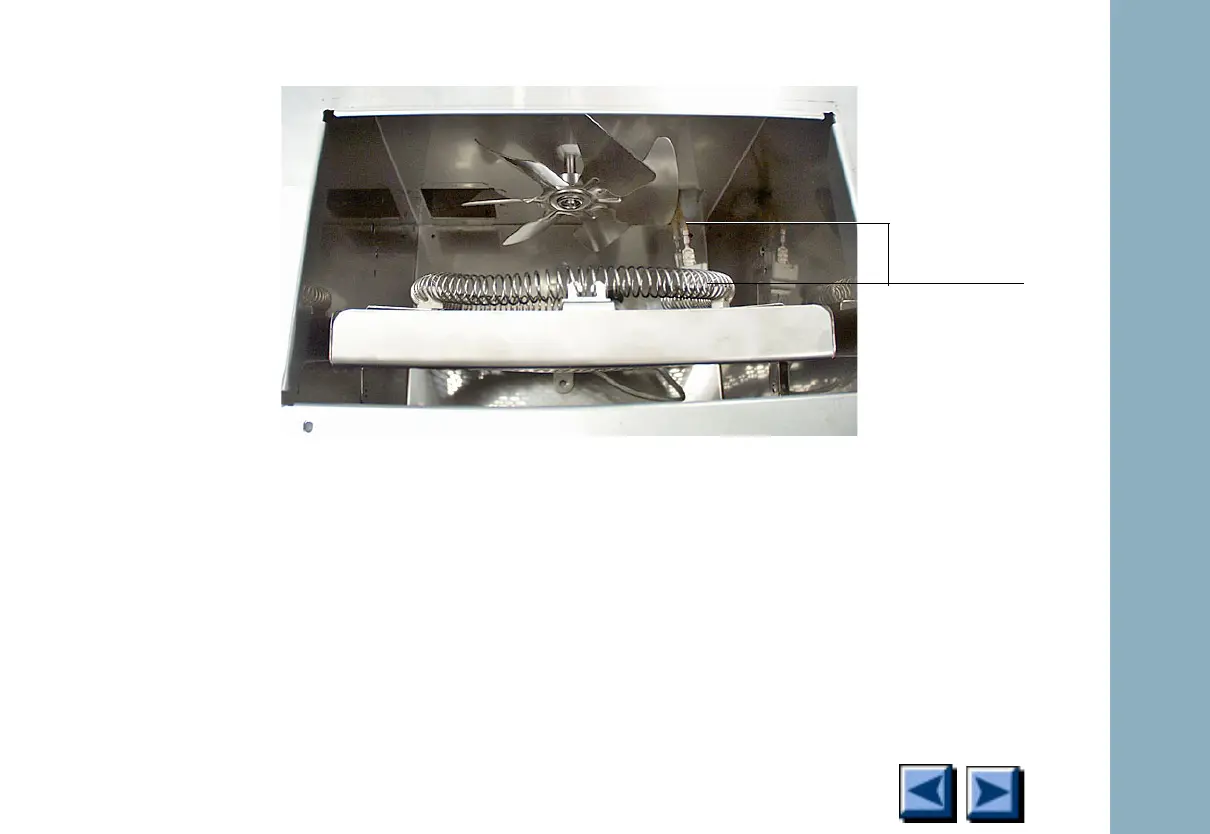

Oven heater wires
