6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 250

AC boards

WARNING

Shock hazard. Before beginning, turn off the

instrument and disconnect the power cord.

To remove the AC board assembly

1. Remove the back cover. See “Back cover” on

page 1-16.

Caution

Use electrostatic discharge precautions

while replacing the main board.

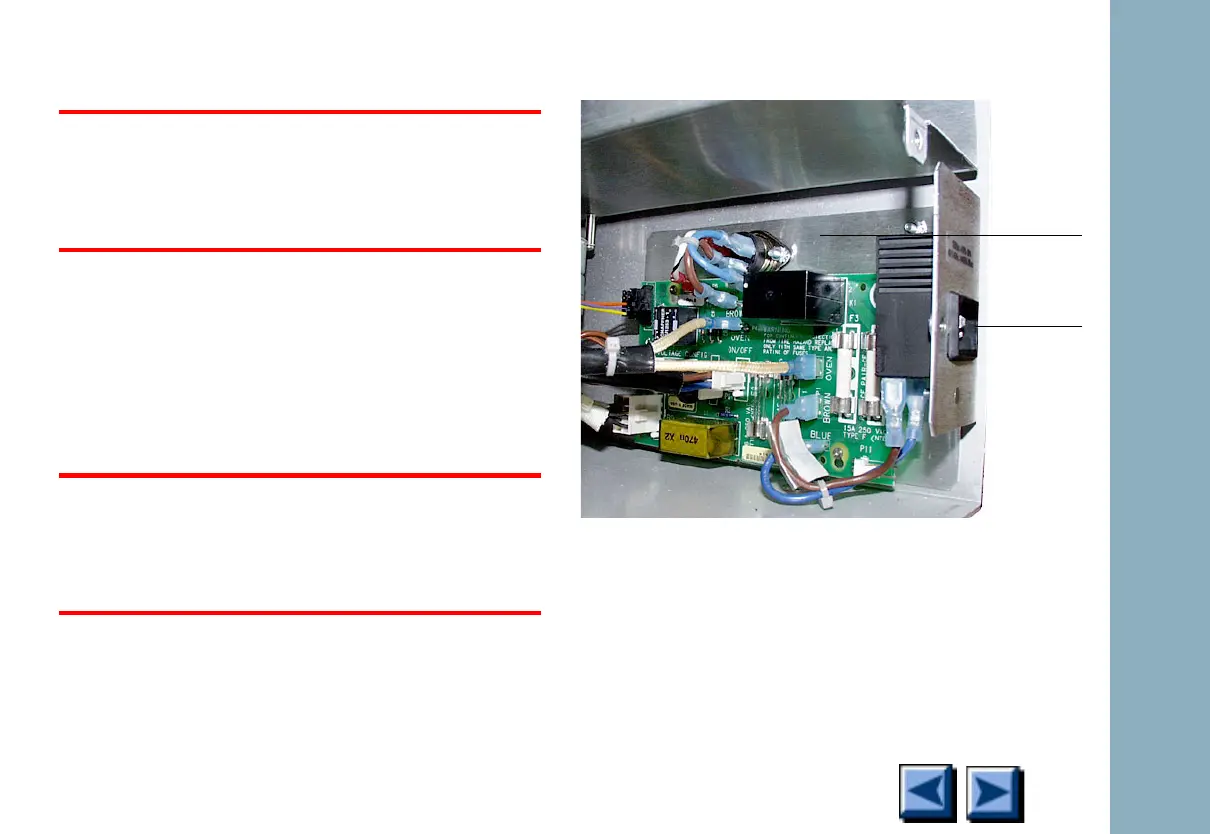

Figure 1-1. AC board

2. Disconnect the power switch cable (P8). See

Figure 1-2, “AC board connectors” for more

information.

AC power

receptacle

AC board

assembly
