Auxiliary flow block

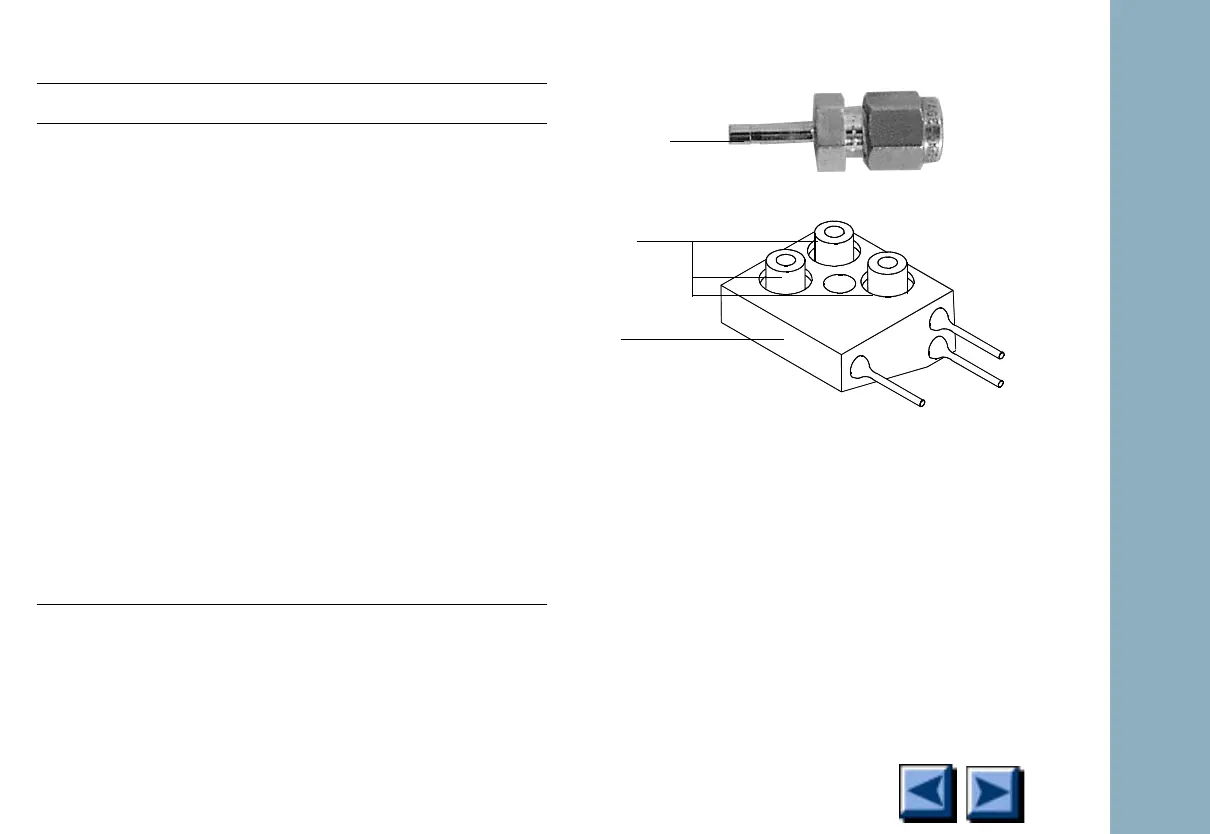

Figure 1-7. Auxiliary flow block
Description Part no. Qty.
1. Exit fitting weldment G1570-80500 1
2. Restrictors kit, includes: G1570-60540 1
FID H
2
(red dot)
19231-60770
FID air (brown dot)
19231-60610
NPD HYD (blue dot) 19234-60660
Zero resistance tube (brass tube)
G1570-20540
3. External flow restrictor (2/pk) G1530-XXXXX
4. Replacement Aux EPC module G1570-64000 1
NS O-ring, 239-inch (part no.
5181-3345, 6/pk)
0905-1014 3
NS Aux EPC kit
G1570-60500
NS Aux EPC replacement kit G1570-64000
NS AED/AUX EPC (G2606A) G1570-60560
