Agilent Technologies 6850 Series User Manual

Inlets and valves
6850
6850
Released: April 2004 6850 Series Gas Chromatograph Service Procedures 31

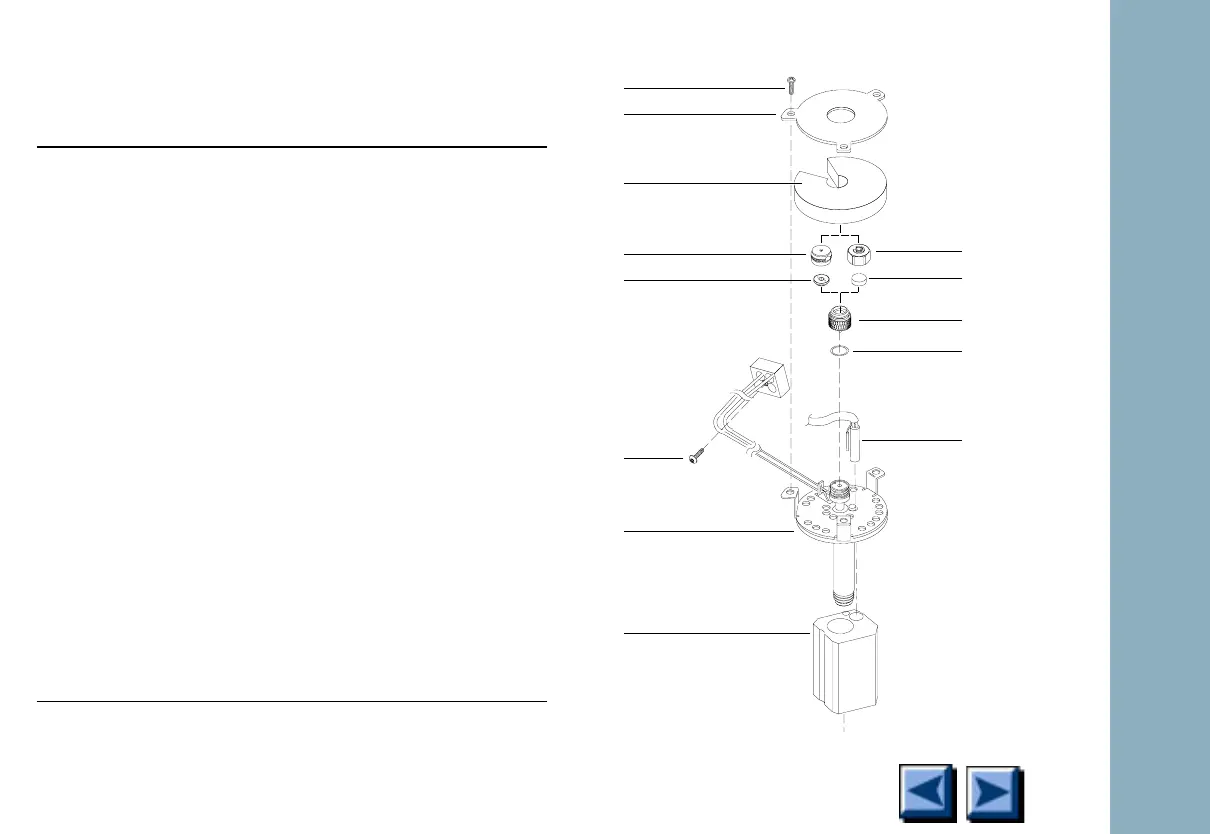

Purged packed inlet
Description Part no. Qty.
1. Screws, Torx T-20, M4 x 12 mm
(Captive)
0515-2496 3
2. Top cover plate G1543-00085 1
3. Top insulation G1543-00100 1
4. Nut, Merlin Microseal
5182-3445 –
5. Septum, Merlin Microseal 5182-3444 –
6. Septum nut
18740-60835 1
7. Septum, 11 mm, low bleed (50/pk)
5183-4757 –
8. Top insert weldment, standard 19243-80570 1
9. Viton O-ring (12/pk)
5080-8898 1
10. Heater/sensor assembly
G1543-61540 1
11. Screw, Torx T-10, M3 x 16 mm 1390-1022 1
12. Inlet weldment
G1543-80580 1
13. Top gasket insulation (not shown)
G1543-00155 1
14. Thermal block G1543-20765 1
1
2
3
4
5
6
7
10
11
12
14
8
9
Continued
