Inlets and valves

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 42

Any inlet flow module

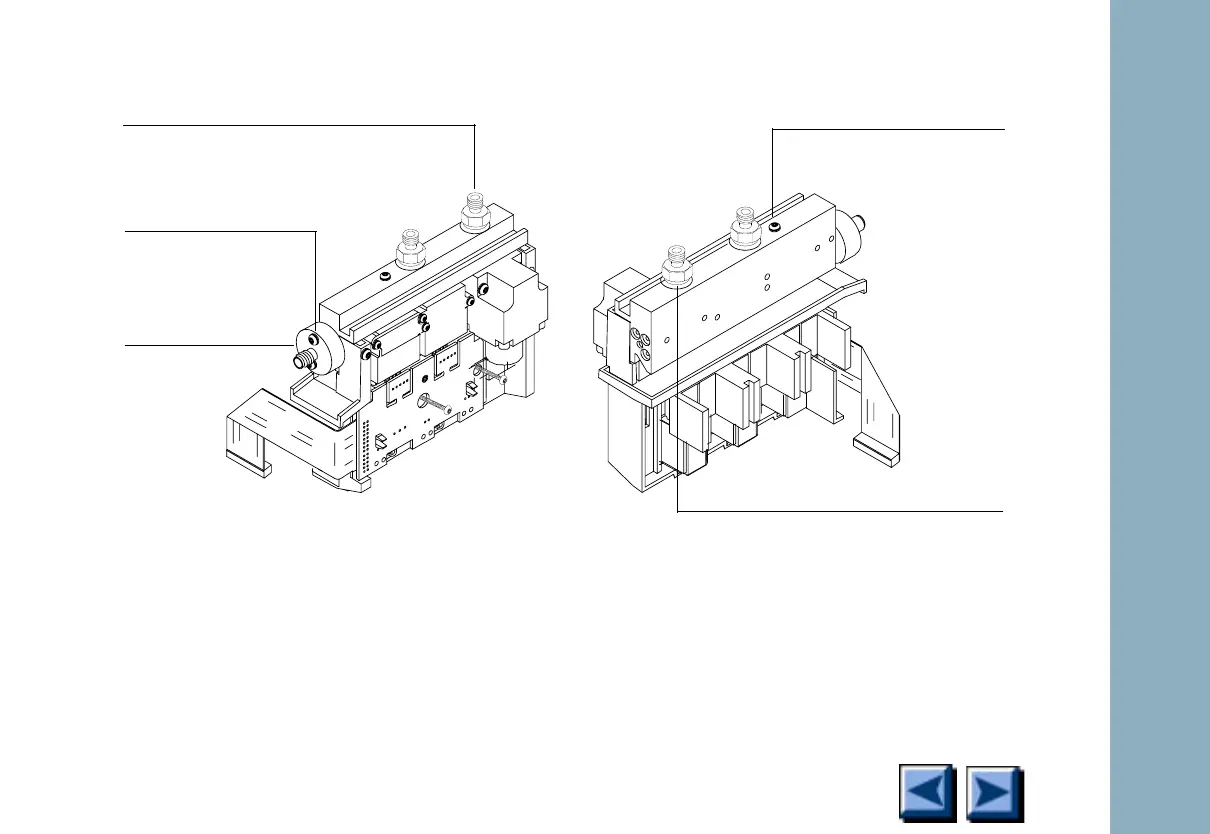

Figure 1-7. Inlet flow module replacement parts (split/splitless shown)

Back left view Front right view

Vent fitting, O-ring assembly

G2630-61720

Inlet fitting

G1543-20610

Screw, M4 x 45 mm, T-20

0515-2484

Screw, M3 ×12 mm,

0515-1084

1/4-inch Viton O-ring

5180-4182 (12/pk)

Torx T-10

Continued
