Released: April 2004 6850 Series Gas Chromatograph Service Procedures 216
8. Unscrew the two T-10 Torx screws that hold
the flap motor onto the duct.

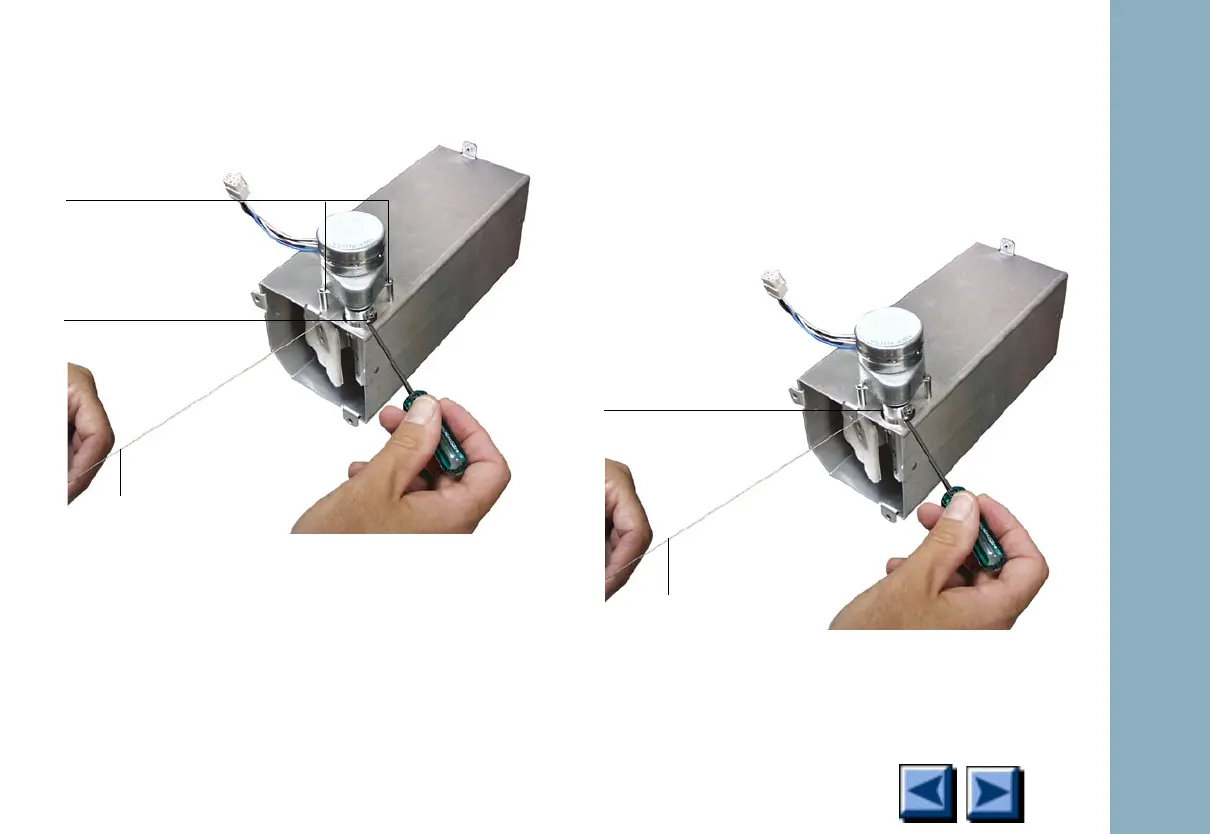

To install the oven flap and motor
1. Hold the flap motor with the cable to the
left, rotate the collar so the flat side is
parallel with the side of the motor, and insert
the motor into the assembly.
2. Install the flap motor onto the duct using
two T-10 Torx screws.
Motor mounting
screws
Flap cable
mounting screw
Flap cable
Collar
Flap cable (to inside)
