Inlets and valves

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 60

Replacement Procedures

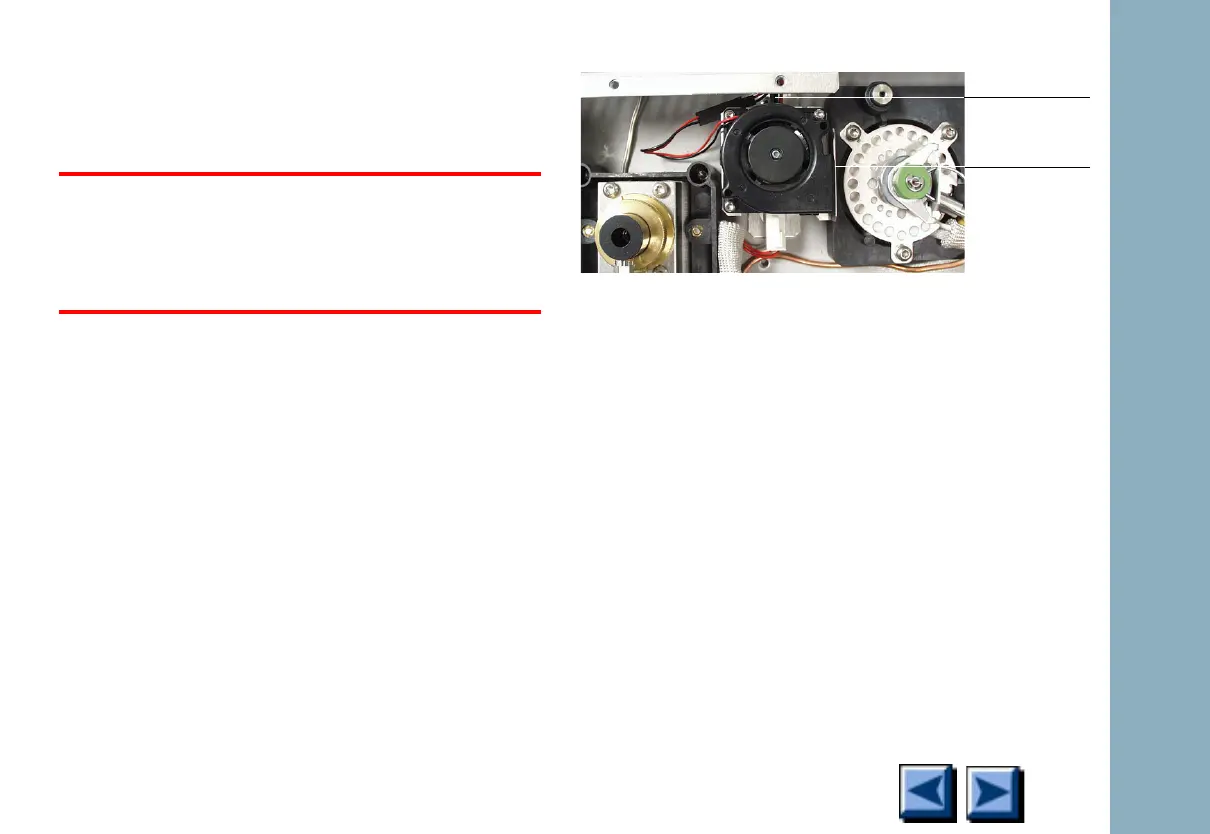

Injection port cooling fan

WARNING

Shock hazard. Before beginning, turn off the

instrument and disconnect the power cord.

1. Turn off the instrument and remove the

power cord.

2. Remove the top cover. See “Lid top cover” on

page 1-23.

3. Unscrew three T-10 Torx screws and remove

the fan.

4. Disconnect the fan wires at the connector.

When reinstalling the fan, make sure to install

the fan so that the fan exhaust port faces the

inlet.

Fan wire

connector

Port on side

(not visible)
