Oven

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 229

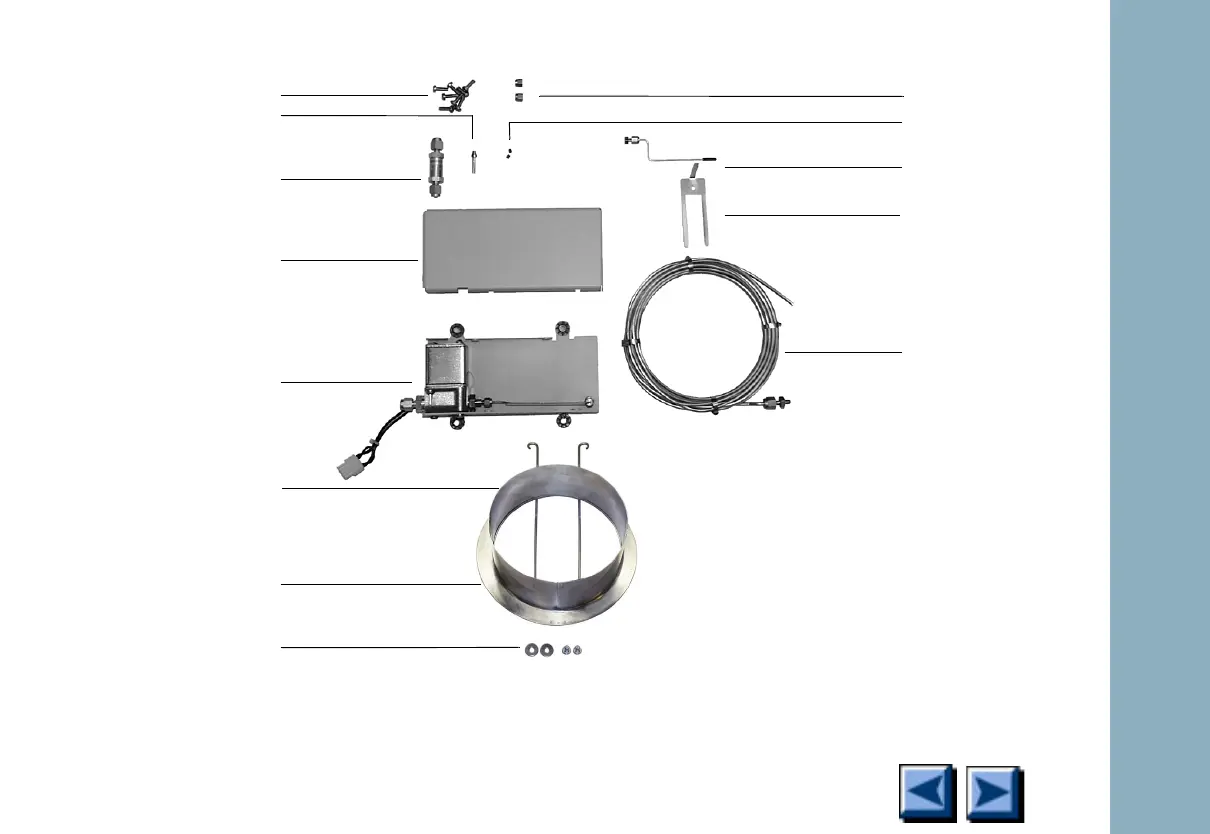

Part identification

Cryo chassis

Cryo cover

Tubing coil

Coil bracket

Restrictor tube

Nuts

Screws

Filter

Connector

Vespel ferrules

Flanged column hanger

Mounting screws and washers

Flange
