Inlets and valves

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 39

PTV LCO

cryo assembly

(part no. G2617–60514)

(Recommended replacement level)

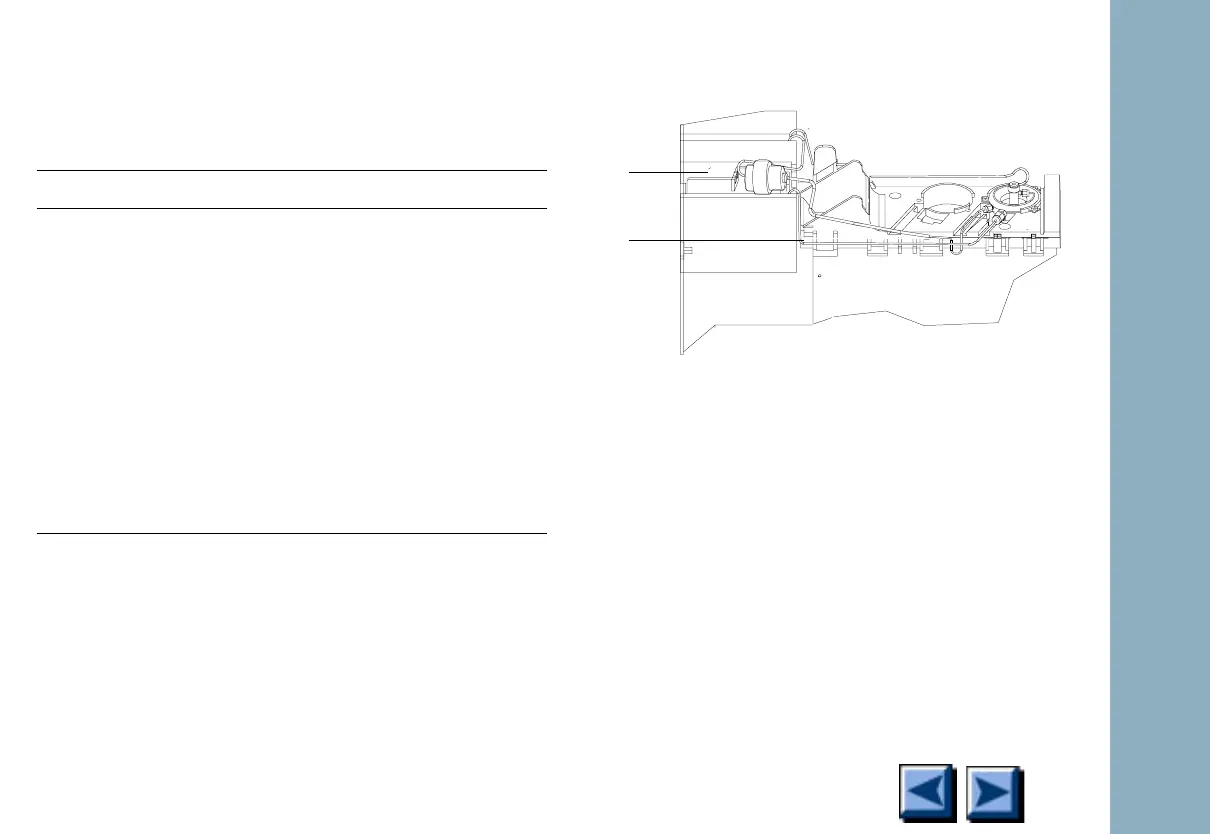

Figure 1-5. PTV LCO

cryo assembly

Description Part no. Qty.

1. PTV LCO

brazement (valve to IP

tube)

G2617-80510 1

2. PTV LCO

valve bracket G2617-00010 1

3. CO

cryo valve G1565-60545 1

4. Cap prot W/O Flg 1401-0044 1

5. Scr-mach 8-32.375-inch 2510-0102 2

6. 1/8-inch male conn W/O O-ring G1543-80025 1

7. Gland seal LCO

G1565-20590 1

8. TFE seal

G1565-20840 1

2, 3

Introduction2
- About this manual3
- About this edition3
- Safety information3
- Tools and test equipment8
Covers9
Replacement parts10
- External covers10
- Internal covers12
- Detector electronic cover and column hanger14
- Connector cover plates (in lid)15
Replacement procedures16
- Back cover16
- Raising the lid to the service position17
- Electronics cover18
- Front cover (with keyboard and display)20
  - To remove the front cover:21
  - To install the front cover:22
- Lid top cover23
Inlets and valves25
Replacement parts26
- Split/Splitless inlet26
  - Split/Splitless inlet flow module30
- Purged packed inlet31
- Cool on-column inlet33
  - Cool on-column EPC pneumatic module35
- Programmable temperature vaporization inlet (PTV)36
- Inlet flow modules41
  - Purged packed inlet41
- Any inlet flow module42
- Fans44
- Valves45
Replacement Procedures60
- Injection port cooling fan60
- Split/Splitless inlet61
  - Inlet insert weldment61
  - Shell weldment63
- Purged packed inlet service66
- Cool on-column inlet77
- PTV inlet89
- Diagnostics114
- Leak testing the PTV module only119
- Valves126
Detectors139
Replacement parts140
- Thermal conductivity detector140
- Flame ionization detector142
- Microcell electron capture detector145
- Flame photometric detector147
- Auxiliary flow block155
- Flow module156
- Electronics board157
Replacement procedures158
- Thermal conductivity detector158
  - TCD cell158
- Microcell electron capture detector161
- Flame photometric detector172
Oven207
Replacement parts208
- Fans208
- Heater duct, flap, and flap motor209
- Oven fan motor and heater shroud210
- Column hanger and oven fan blade211
Replacement procedures212
- Oven flap/motor212
  - To remove the oven flap and motor212
  - To install the oven flap and motor215
- Oven heater shroud217
  - To remove the oven heater shroud217
  - To install the oven heater shroud219
- Oven motor and fan220
  - To remove the oven motor and fan220
  - To install the oven fan motor and fan223
- Oven intake fan223
- Injection port cooling fan225
- CO2 cryogenic cooling kit227
Electronics237
Replacement Parts238
- Main board (G2630-60010)238
- Main board (G2630-66015)239
- AC board (G2630-60040)240
- AC board (G2630-60045)241
- Display board242
- Transformer and AC power switch243
- Cables244
Replacement procedures245
- Main boards245
  - To remove the main board245
  - To install the main board247
- AC boards249
  - To remove the AC board assembly249
  - To install the AC board252
- Keyboard/Display254
- Transformer255
  - Replace the transformer and pad255
G2629A Control Module259
- A typical SERVICE method260
- Update firmware260
- Change GC serial number262
- Change oven type262
Manuals and other parts264
Troubleshooting265
Inlets266
- Split/Splitless inlet266
  - Actual pressure is higher than the setpoint (GC is “not ready”)266
  - Cannot achieve setpoint pressure275
- Purged packed inlet291
- Programmable temperature vaporization inlet292
- Cool on-column inlet293
Detectors294
- Flame ionization detector294
- Thermal conductivity detector308
  - Ringing on tail of TCD peaks308
- Flame photometric detector315
- Microcell electron capture detector319
Other320
- Electronic failures320
  - Blown fuses (dead instrument)320
  - Root Cause(s)325
- Valves331
