Released: April 2004 6850 Series Gas Chromatograph Service Procedures 40
PTV LN
2
cryo assembly
(part no. G2619–60504)
(Recommended replacement level)

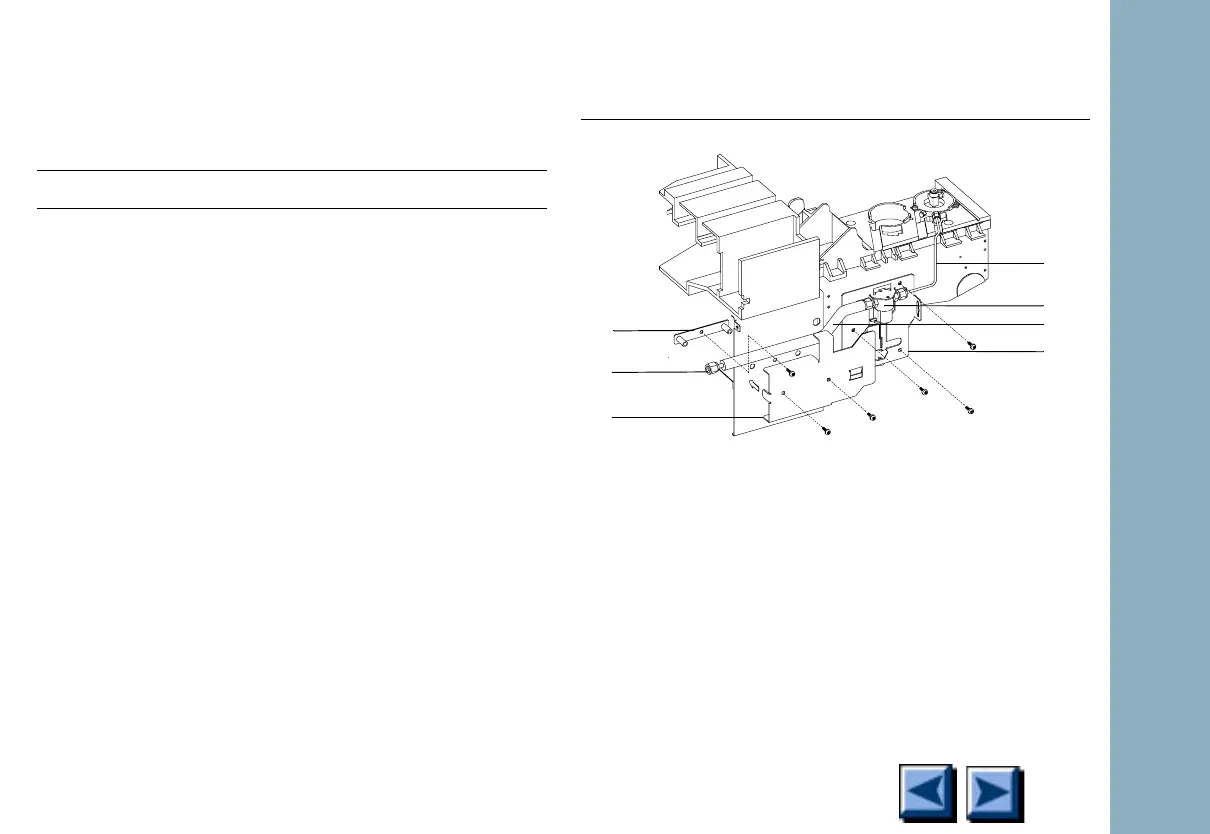

Figure 1-6. PTV LN
2
cryo assembly
Description Part no. Qty
1. PTV LN
2
nut plate
G2619-00040 1
2. PTV LN
2
supply tube
G2619-20520 1
3. PTV/CFO LN
2
insulation cover G2619-00030 1
4. PTV LN
2
-cell inlet tube G2619-20510 1
5. Cryo valve G1566-60557 1
6. PTV inlet tube insulation G2619-00010 1
7. PTV solenoid bracket G2619-00020 1
8. PTV jumper cable (not shown) G2619-60502 1
9. Nut 1/4-inch tubing SS (not shown) 0100-0055 1
10. Connector (not shown) 0100-0112 1
11. Connector—male (not shown) 0100-0208 1
12. 1/4-inch ferrule set SST (not
shown)
0100-1827 1
13. Tape—industrial (not shown) — —
14. Cap—protective (not shown) — —
15. MS 8-32.312 LG (not shown) 2510-0043 2
1
2
3
4
5
6
7
