Released: April 2004 6850 Series Gas Chromatograph Service Procedures 21

To remove the front cover:

1. Unscrew the two T-20 Torx screws at the

bottom of the front cover.

2. Open the lid.

3. Remove the two T-20 Torx screws in the top

of the front cover.

4. Press the two lid latch release buttons (on

either side of the instrument’s front, toward

the top) until they disengage from the front

panel.

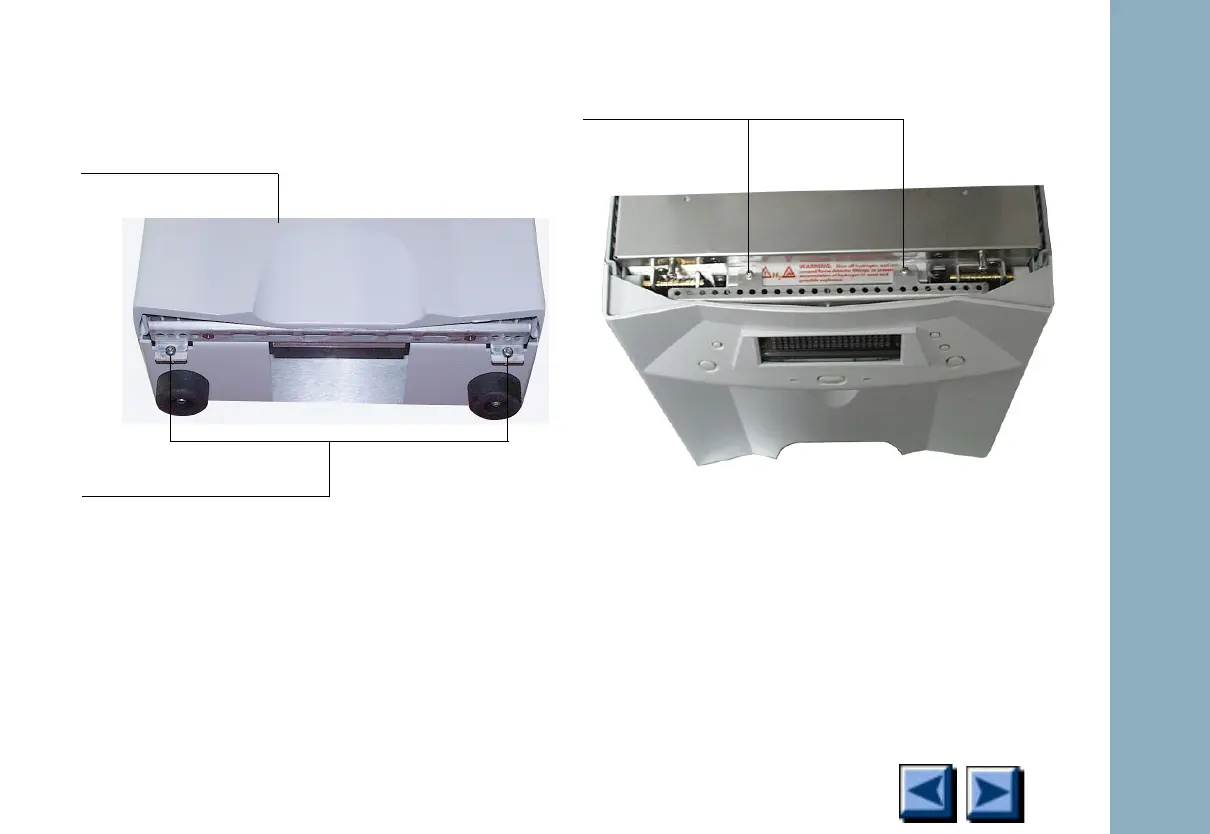

Front cover

Remove these screws

Remove
