Released: April 2004 6850 Series Gas Chromatograph Service Procedures 38

PTV calibrated module assembly

(part no. G2617–60500)

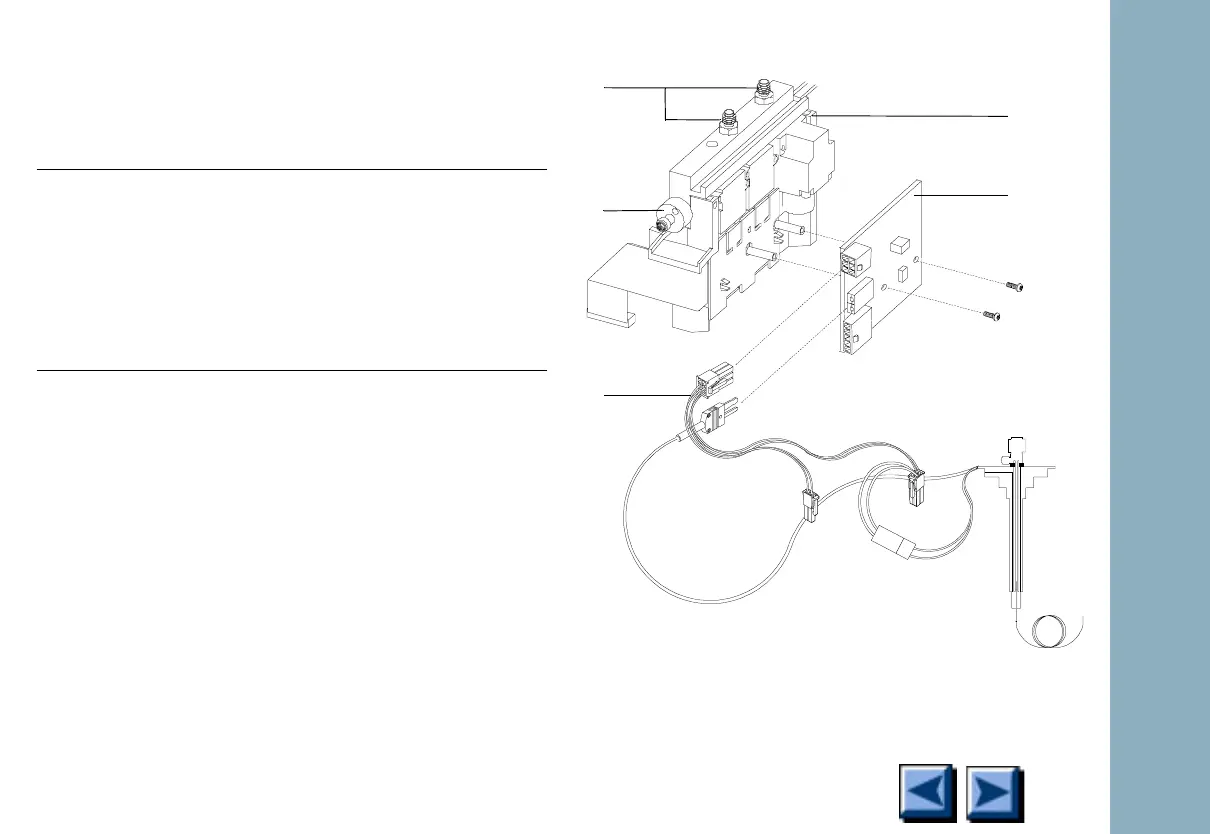

Figure 1-4. PTV flow module

Description Part no. Qty.

1. PTV thermocouple PCB

G2617-60010 1

2. PTV thermocouple PCB cable

G2617-60505 1

3. Calibrated module assembly

G2617-60500 1

4. Male connectors 1/8-inch

Swagelok

G1543-80030 2

5. Inlet fitting block G1543-20510 1
