Released: April 2004 6850 Series Gas Chromatograph Service Procedures 142

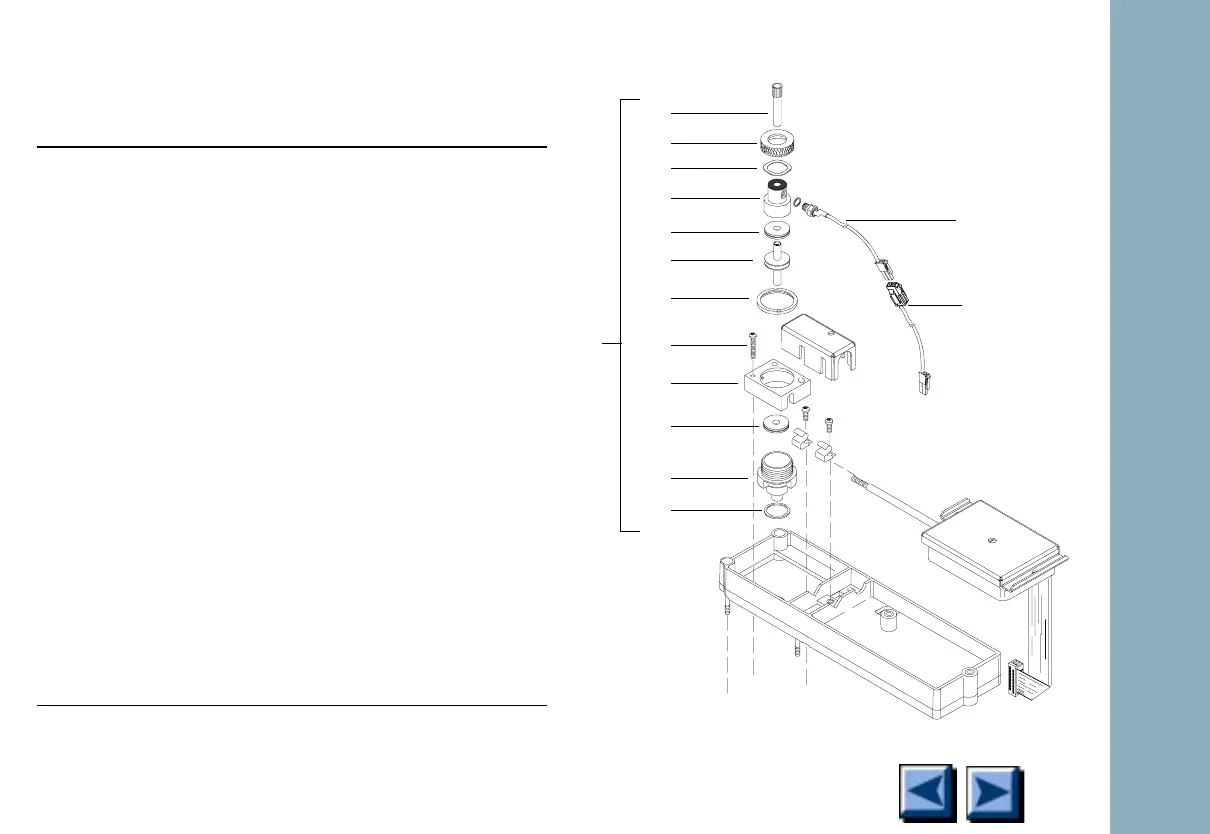

Flame ionization detector
Description Part no. Qty.
1. Collector assembly: G1531-60690 1
2. PTFE chimney (optional) 19231-21050 –
3. Collector nut
19231-20940 1
4. Spring washer 3050-1246 1
5. Ignitor castle
or optional Hastelloy component
19231-20910
19231-21060
1
1
6. Ignitor (glow plug) assembly 19231-60680 1
7. Ignitor cable assembly G1531-60680 –
8. Upper/lower collector insulator
G1531-20700 2
9. Collector body G1531-20690 1
10. Spanner nut (collector) 19231-20980 1
11. Collector mount
G1531-20550 1
12. Collector housing G1531-20740 1
13. Gasket 5180-4165 1
14. Screw, M4 × 25 mm, Torx, T-20
0515-2712 3
1
2
3
4
5
6
8
9
10
11
12
13
14
7
8
Continued
