Inlets and valves
6850
6850
Released: April 2004 6850 Series Gas Chromatograph Service Procedures 49
Valve box assembly

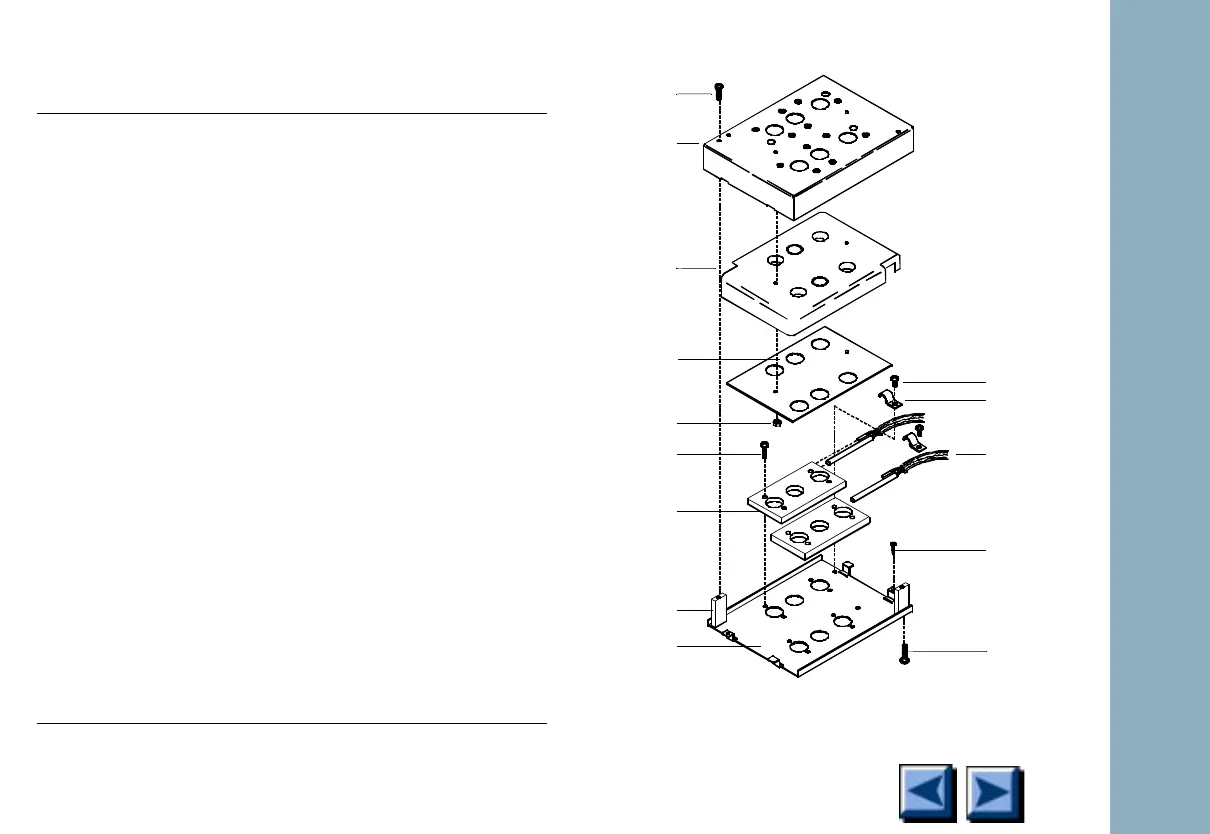

Figure 1-9. Valve box assembly
Description Part no. Qty
1. Screw, M4 × 8 mm, Torx T-20,
chrome plated
0515-2711 6
2. Valve box cover
G1580-00030 1
3. Valve box insulation, top G1580-00050 1
4. Insulation retainer plate G1580-00040 1
5. Hex nut, insulation plate
0535-0025 2
6. Screw, M3 × 30 mm, Torx T-10,
chrome plated htr (blk)
0515-2525 4
7. Heater block G1580-20520 2
8. Standoff, valve box
G1580-20500 2
9. Valve box bottom plate
G1580-00010 1
10. Screw, M3 × 8 mm, Torx T-10,
chrome plated
0515-2726 2
11. Heater/Sensor harness cable
clamp
1400-0015 2
12. Heater/Sensor assembly G1580-61140 2
13. Cable-tie strap (not shown)
1400-0249 4
14. Aluminum tube (split/splitless inlet
only) (not shown)
18900-20320 1
15. In-line filter (sample in line) (not
shown)
0101-0532 1
1
2
3
4
5
6
7
8
9
10
11
12
1
3
1
