Released: April 2004 6850 Series Gas Chromatograph Service Procedures 32
Purged packed inlet, continued
Description Part no. Qty.
15. Bottom nut
G1543-20580 1
16. PPIP Insulation
G1543-00030 1
17. PPIP Bottom insulation
G1543-00070 1
18. Glass insert (25/pk)
5080-8732 1
19. Vespel ferrule (10/pk)
5080-8774 1
20. Tubing nut (1/4-inch brass) (10/pk)
5180-4105 1
21. 530-µm Column liner (See
Consumables Catalog)
19244-80540 1
1/8-inch Column adapter (optional)
(not shown)
19243-80510 –
22. Nutwarmer insulation 19234-60715 3
23. Nutwarmer cup 19234-60700 1
24. Ferrules (identify by internal dia.):
Solid ferrule plug (no hole) 5181-7458 1
Graphite ferrule 0.5-mm id (10/pk) 5080-8853 1
Graphite ferrule 1.0-mm id 5080-8773 1
25. Column nut 5183-4732 1

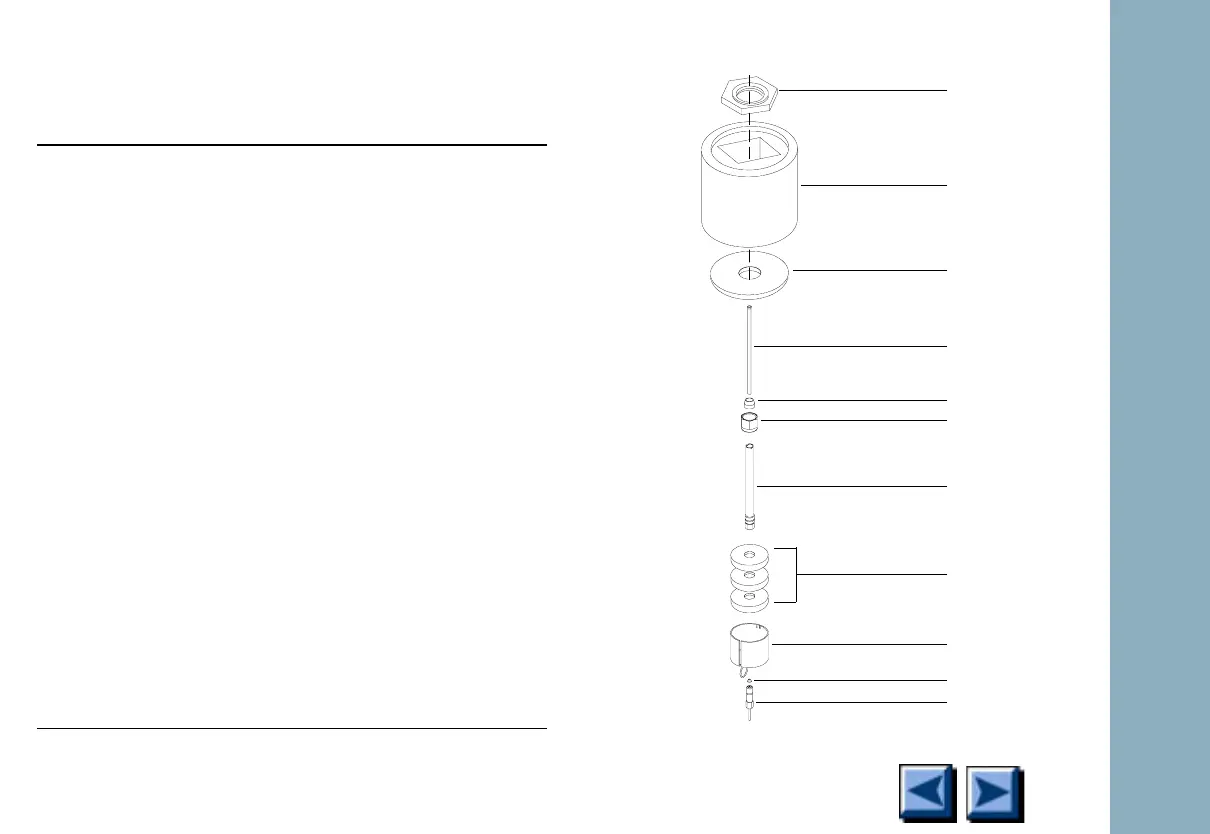

15
16
17
18
19
20
21
22
23
25
