Released: April 2004 6850 Series Gas Chromatograph Service Procedures 252

7. Remove the closest nut on the top of the AC

board bracket.

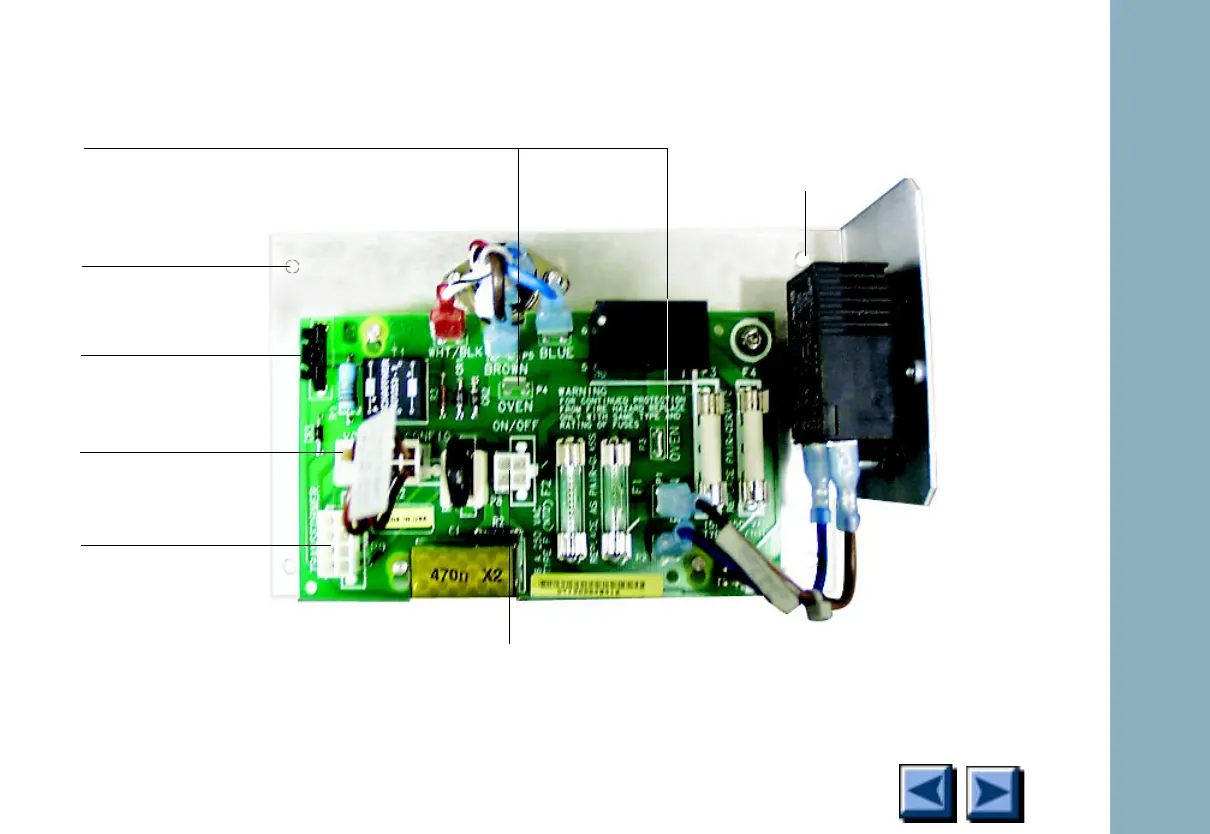

Figure 1-2. AC board connectors

Power switch cable (P8)

Loosen this nut

Remove this nut

Transformer cable (P9)

Oven heater spade lugs

Flap/AC cable (P10)

Voltage configuration

(P3 & P4)

plug (P12)
