Oven
6850
6850
Released: April 2004 6850 Series Gas Chromatograph Service Procedures 219
7. Disconnect the sensor cable from the main
board.
8. Remove the three screws (T-20 Torx) secur-
ing the oven heater shroud in the oven.
9. Feed the sensor cable up through the hole in
the bottom of the oven, and remove the extra
insulation and save it.
10. Remove the oven heater shroud. Feed the
oven heater wires out through the hole in the
back of the oven. These same wires will be
used to install the new oven shroud. Remove
any extra insulation from the wires and save
it.

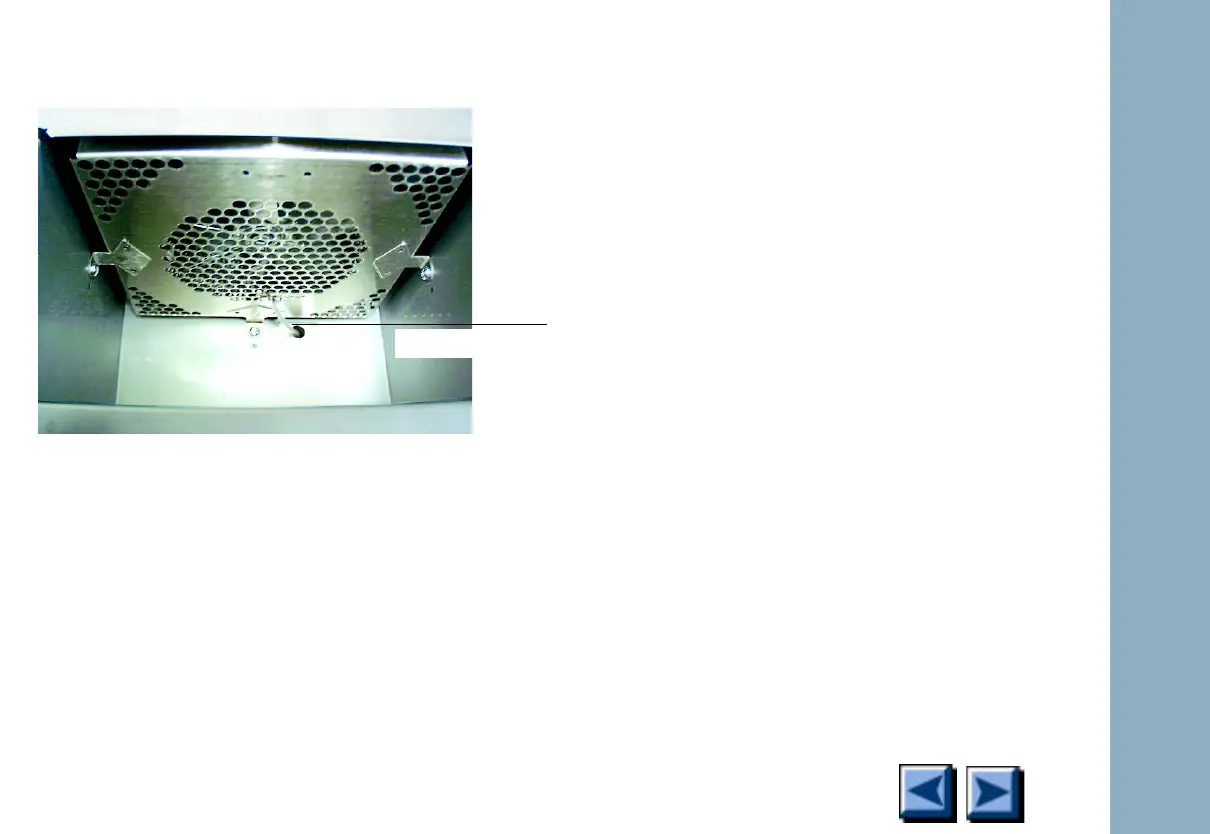

Oven sensor cable
To Next Page
