Return Loss Measurement Return Loss Measurement
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 169
–[Meas], the power currently measured by the Return loss
Module’s internal monitor diode in dBm

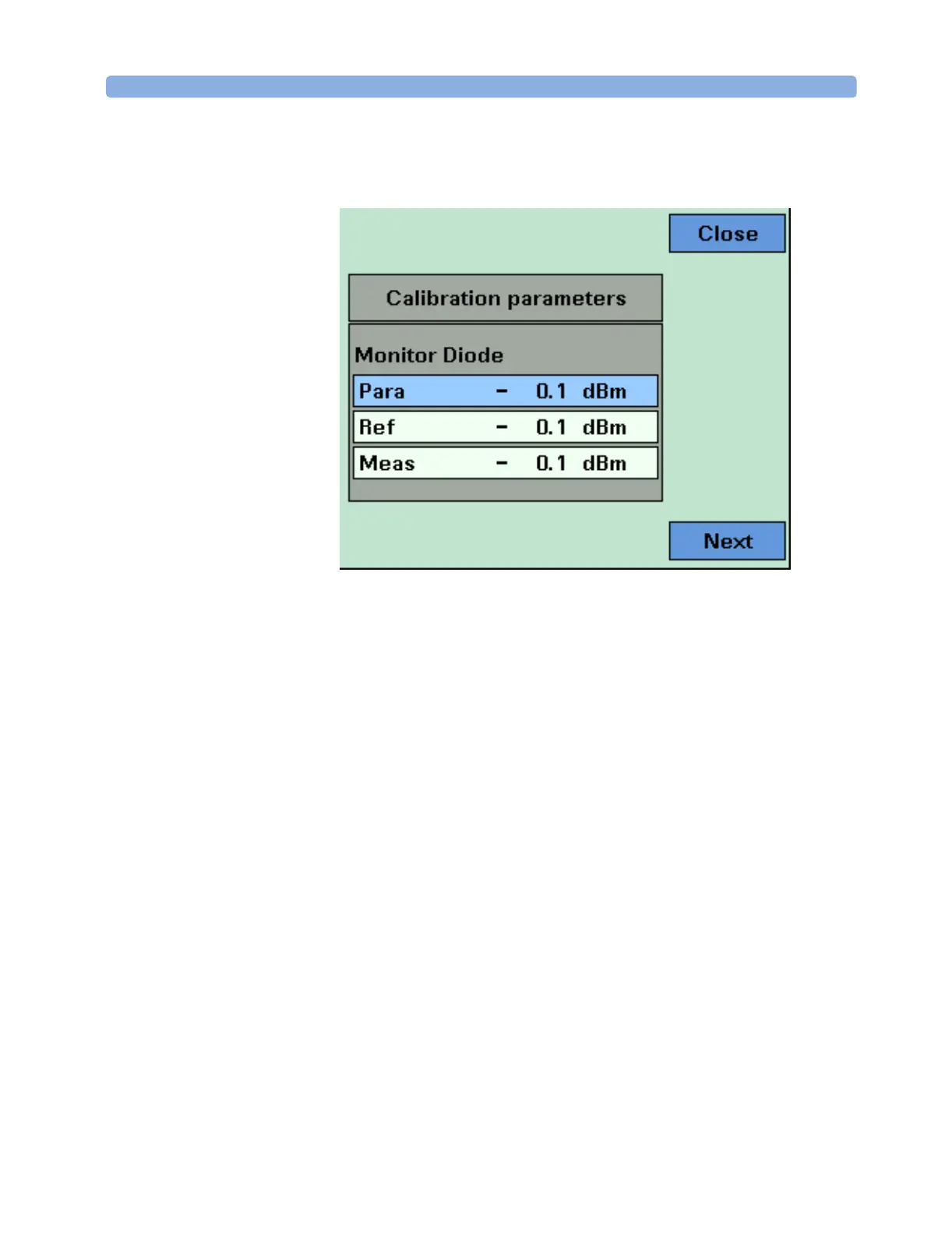

Figure 106 The Calibration Parameters Screens - Monitor Diode
3 Press [Next]. The Calibration parameters screen for User Data
appears, as displayed in Figure 107. This screen shows current
value for the following quantities:
–[FPDelta], the loss correction, in dB, due to differences between
the reference cable and the measurement cable, such as
differences in the front panel connector.
To Next Page
