NOTE If [Step] does not divide exactly into the difference between [λ Stop]
and [λ Start], the parameters are automatically corrected to meet the
constraints of PACT.
If the step size is very large in comparison to the sweep range, a box
requesting you to correct the [λ Stop], [λ Start], and [Step] may
appear.
The PACT Measurement Screen, as shown in Figure 166, appears.
The number of samples that each Power Meter will record and the
output laser power are displayed. If <Continuous> was selected as
the sweep [Method], the sweep speed, [V Sweep], is displayed.
NOTE The application chooses the power level, [P], see step 15 for more
information.
26 There are two softkeys available from the PACT Measurement
screen.
– Press [Graph] to view a graph of the Measurement results as the
results are measured. Press [Close] to return to the PACT
Reference Measurement screen. See “Working with Application
Graphs” on page 215 for information on zooming in and out.
– Press [Cancel] to return to the PACT Reference screen without
completing the stability application.

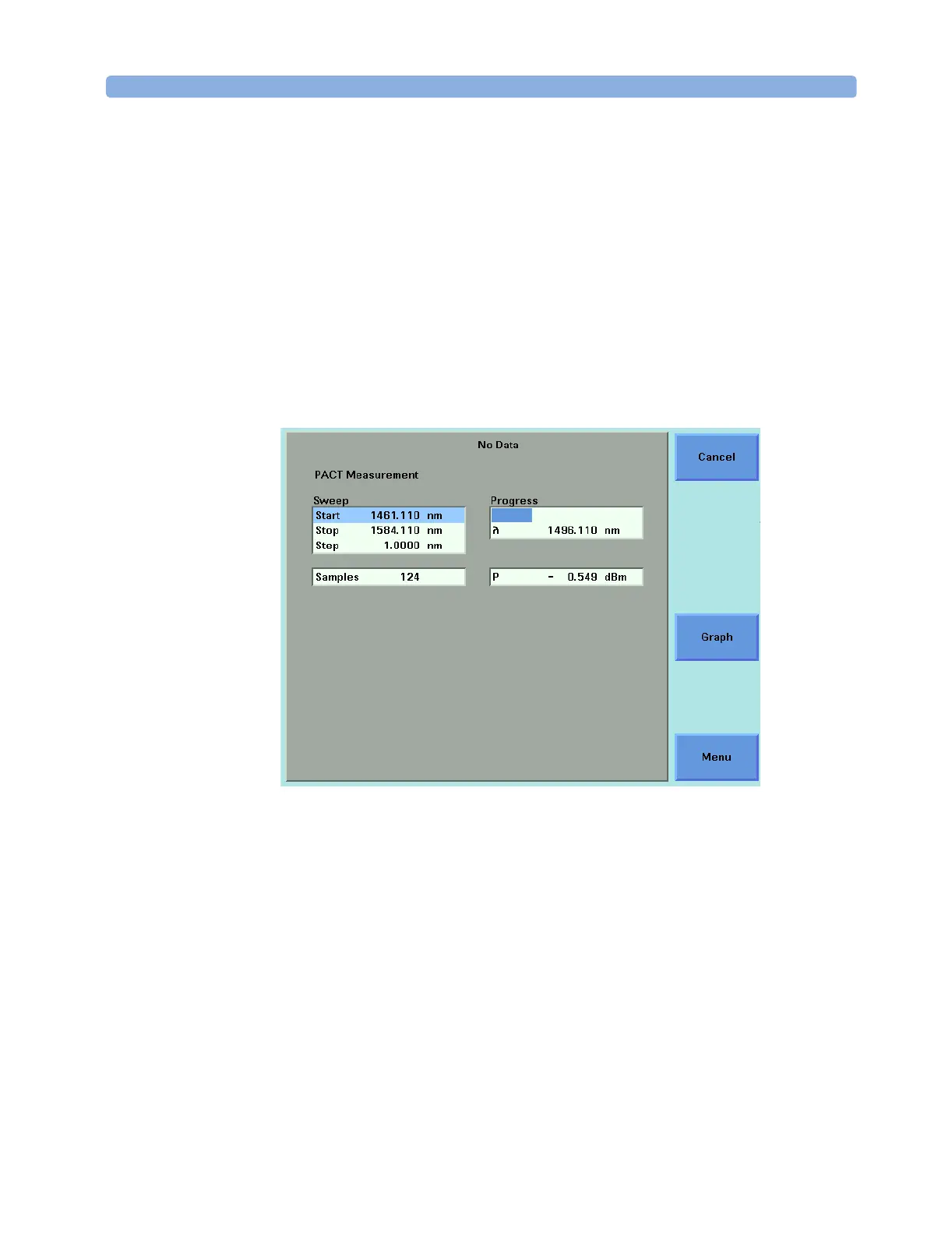

Figure 166 PACT Measurement Screen
