How to Measure Power Power Measurement
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 91
See Table 7 on page 93 for more details.
If the measured power is more than 40 dBm less than the range
setting, it is impossible for power to be displayed. The power value, -
1.--- dBm, as shown in Figure 50, is shown. This means that the
measured power is greater than the resolution at this [Range] value.
You must increase the [Range] value.

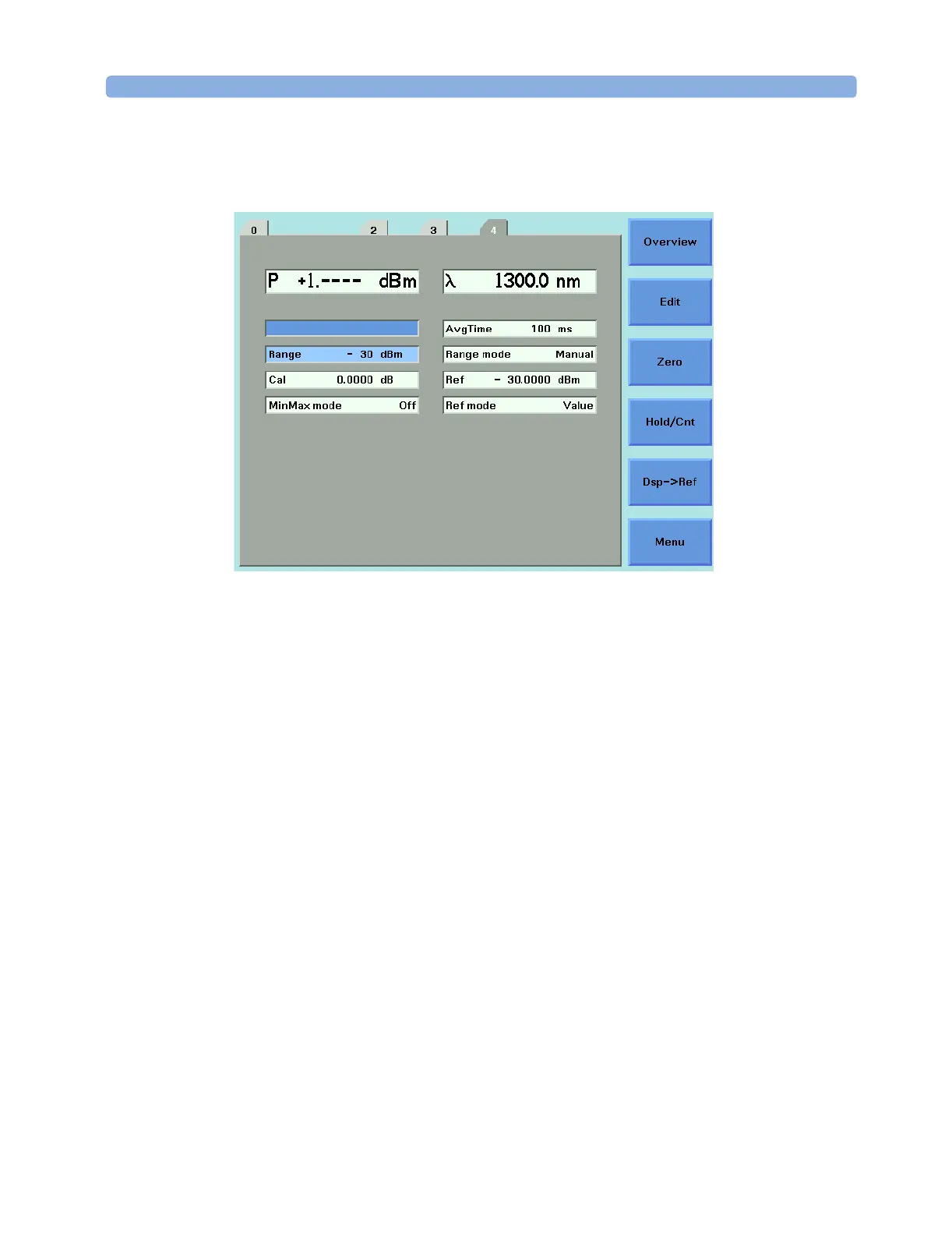

Figure 49 Out of Range - Power Greater Than Upper Power Limit
