4 Connect the ground lead on each set of channels (each pod), using a probe grabber.
The ground lead improves signal fidelity to the oscilloscope, ensuring accurate
measurements.

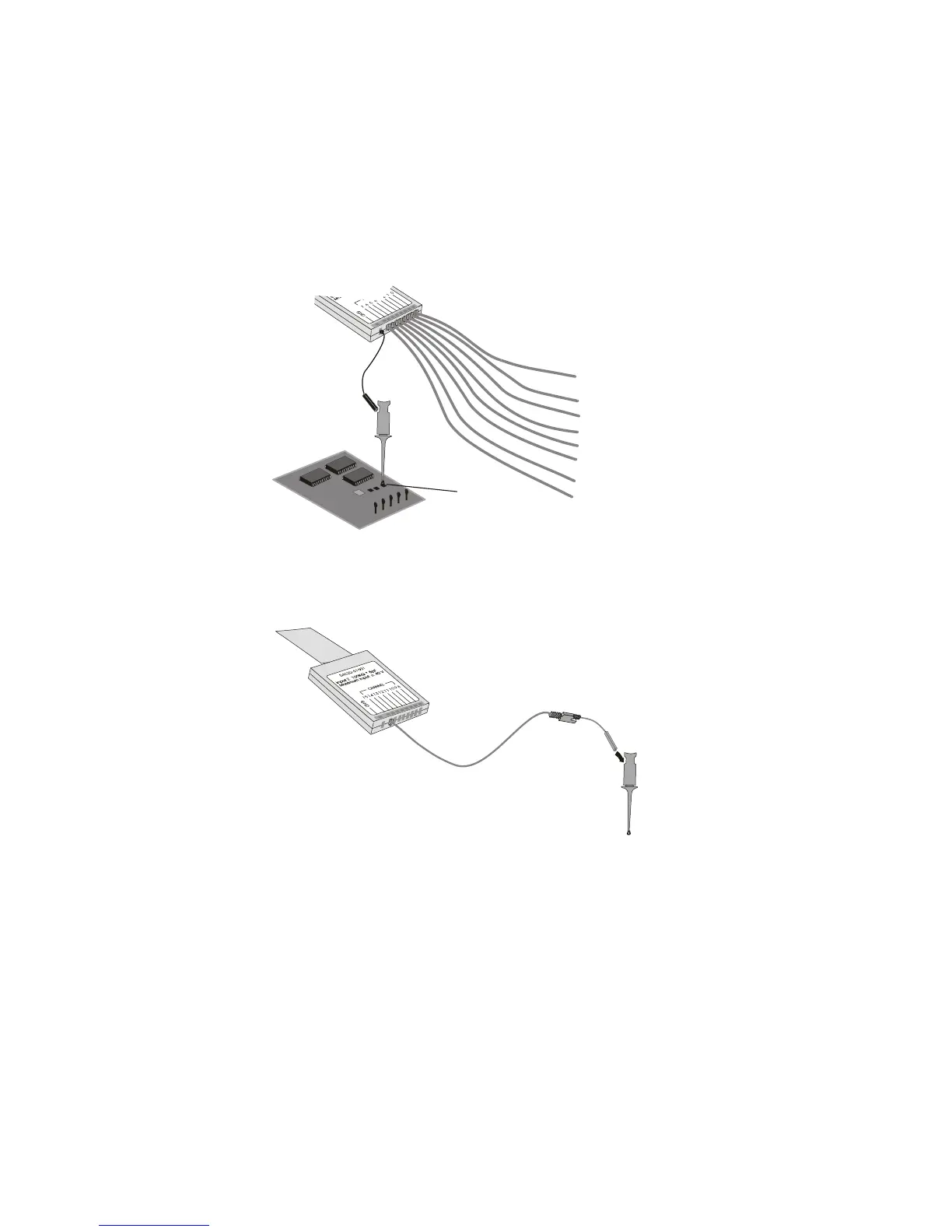

5 Connect a grabber to one of the probe leads. (Other probe leads are omitted from the
figure for clarity.)
Circuit
Ground
Channel
Pod Ground
Grabber
