13 Digital Channels
374 InfiniiVision Oscilloscopes User’s Guide

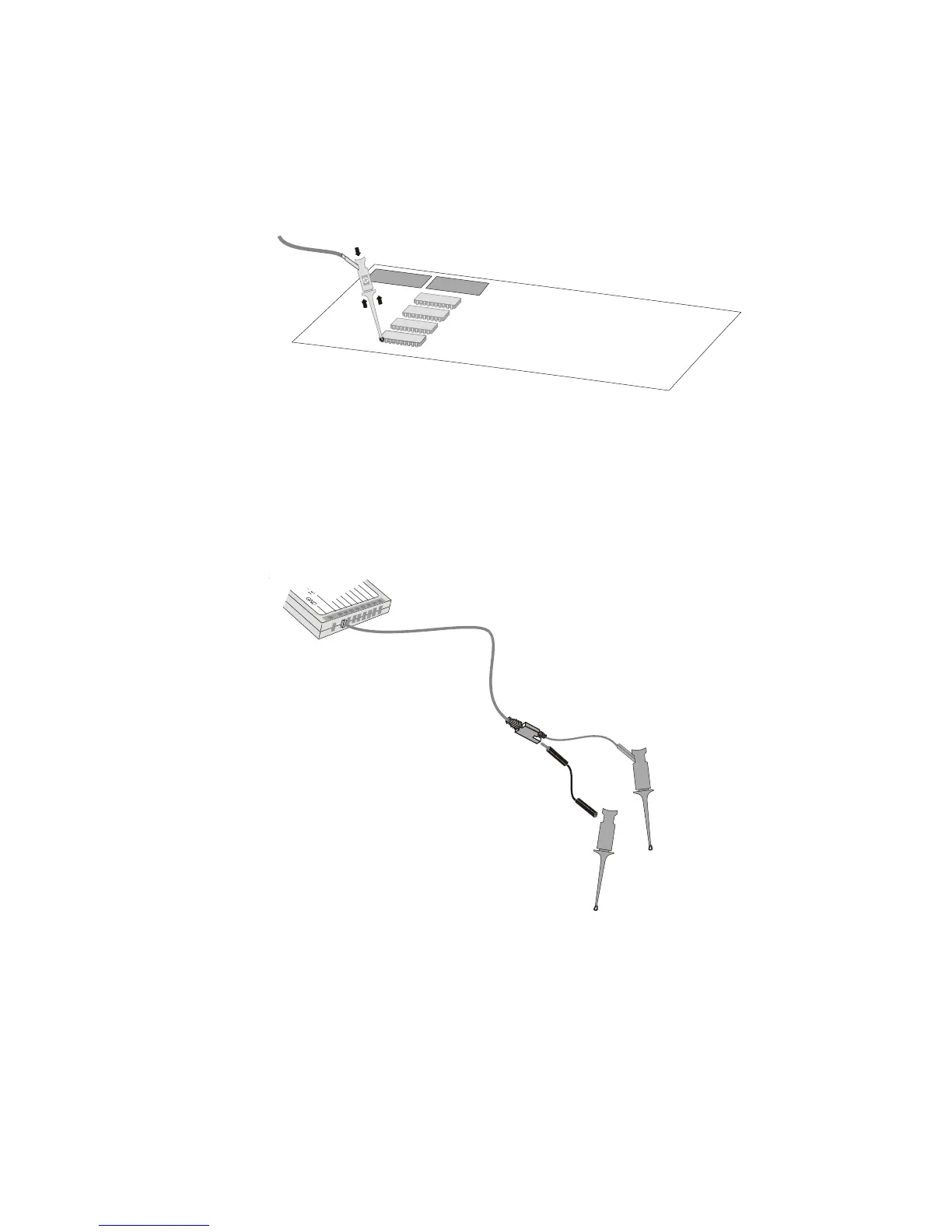

6 Connect the grabber to a node in the circuit you want to test.
7 For high-speed signals, connect a ground lead to the probe lead, connect a grabber to
the ground lead, and attach the grabber to ground in the device under test.
Signal Lead
Ground Lead
Grabber
