Installer manual AlphaVision ML Rev. 3.60 01-01-2015 118

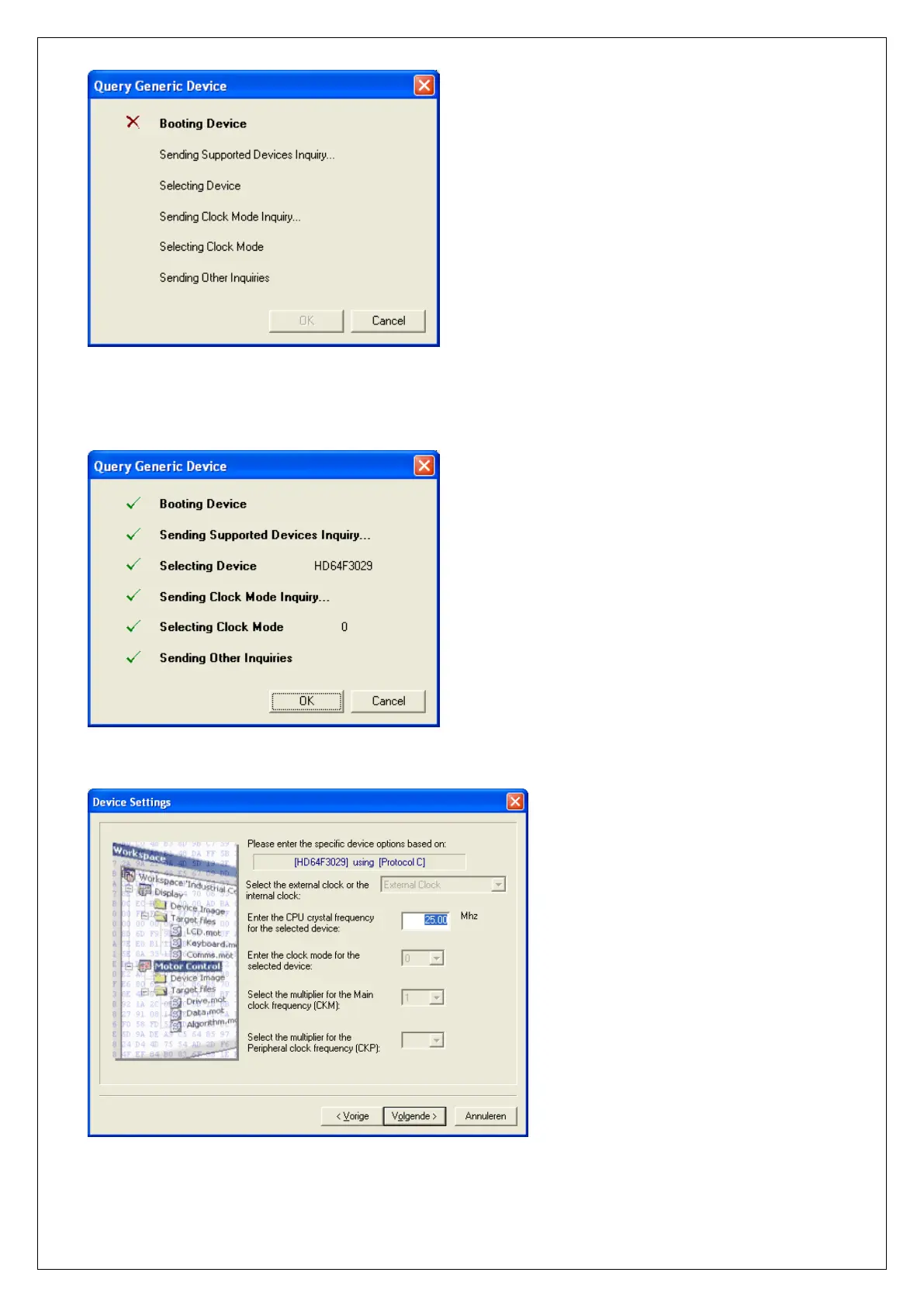

If for some reason the connection is not established (the AlphaVision ML XL is not powered up or the

programming cable is not connected), press Cancel. If the connection is established the following screen will

appear.

Press OK.

Do not change the 25.00 MHz value, this is the correct value. Press Next.
