Installer manual AlphaVision ML Rev. 3.60 01-01-2015 61

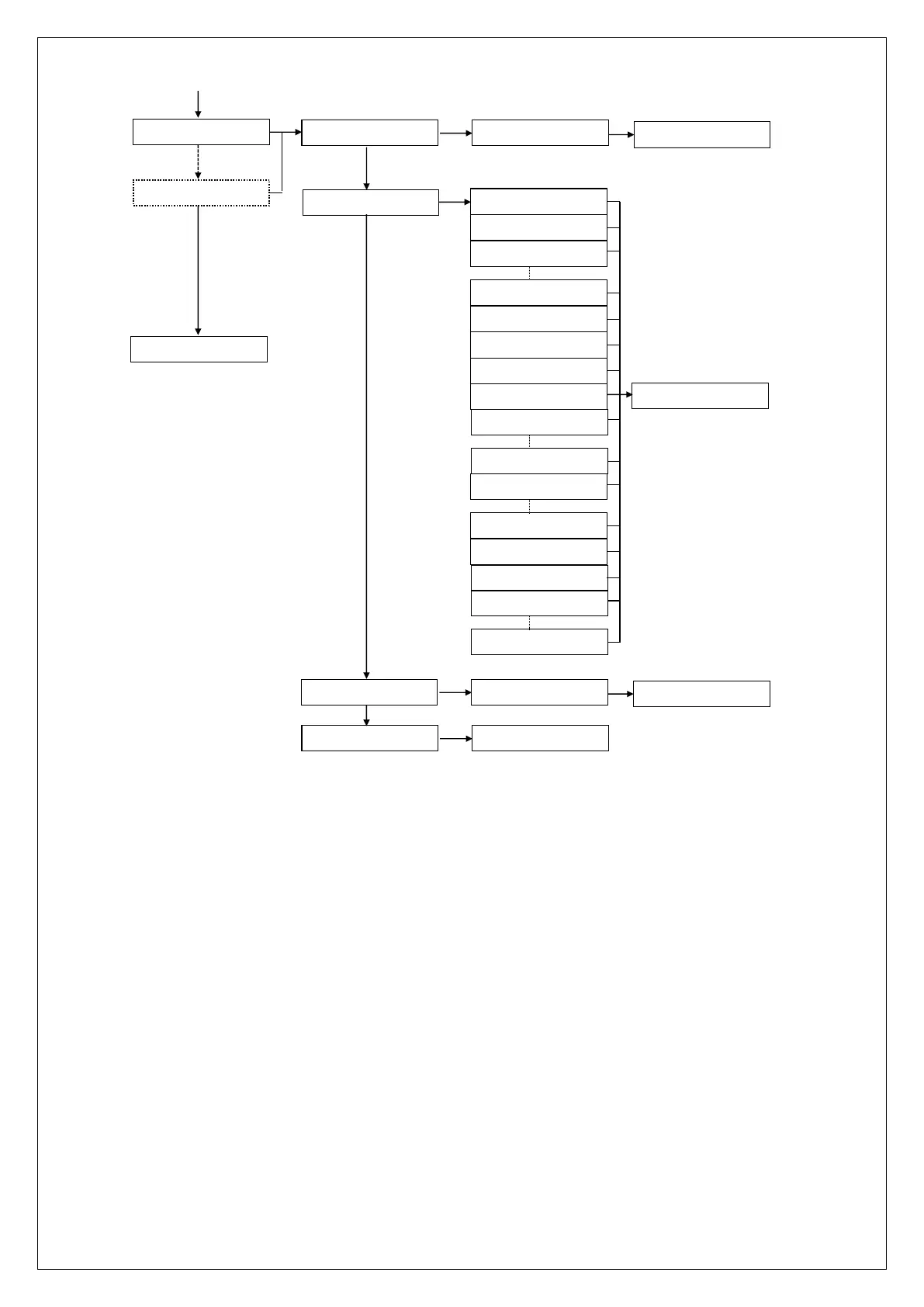

ALARM
OK
PARTIALLY
COMPLETELY
FIRE RESET
SAVED
ok
TRIGGER OUTPUT
FIRE
TESTMODE
BUZZER SECTION 1
BUZZER SECTION 8
SECTION 1 ARM/DI
SECTION 8 ARM/DI
SECTION 1 ALARM
SECTION 8 ALARM
FOLLOW INPUT 1
FOLLOW INPUT 100
KNX 1
ok
KNX NAME KNX NAME:
SAVED
ok
KNX 50
KNX OUTPUT TYPE
ok
PREVIOUS MENU
ok
KNX OUTPUT TIME xxx SECONDS
SAVED
ok
KNX OUTPUT TEST KNX OUT 1 ON
ok
The AlphaVision ML main board has 2 potential free relay contacts (AL1 en AL2), 2 open collector outputs
(OC.3 en OC.4) and a speaker output (LS).
LS output
The Alpha Vision ML main board is equipped with a loudspeaker (LS) output where a 4-8 ohm speaker can
be connected to. The AlphaVision I/O module with power supply (art.nr. 004312) is also equipped with a
loudspeaker (LS) output. The LS output on the main board (and the I/O module) can be activated as a siren
output in case of alarm, sabotage or fire (depending on the programming, LS OUTPUT - YES or NO). This
applies for the zones programmed as:
Direct
Delayed 1 to 5
Emergency exit (= always 24-hour)
24-hour loud
Fire (= always 24-hour)
Sabotage
Follower
Follower delayed
Gas alarm
Water alarm
Temperature alarm
If a fire zone is activated the sound coming from the loudspeaker (LS) output is a different (slow-whoop)
siren sound, in order to distinguish between an alarm "intrusion zone" and fire "fire zone".
