Installer manual AlphaVision ML Rev. 3.60 01-01-2015 120

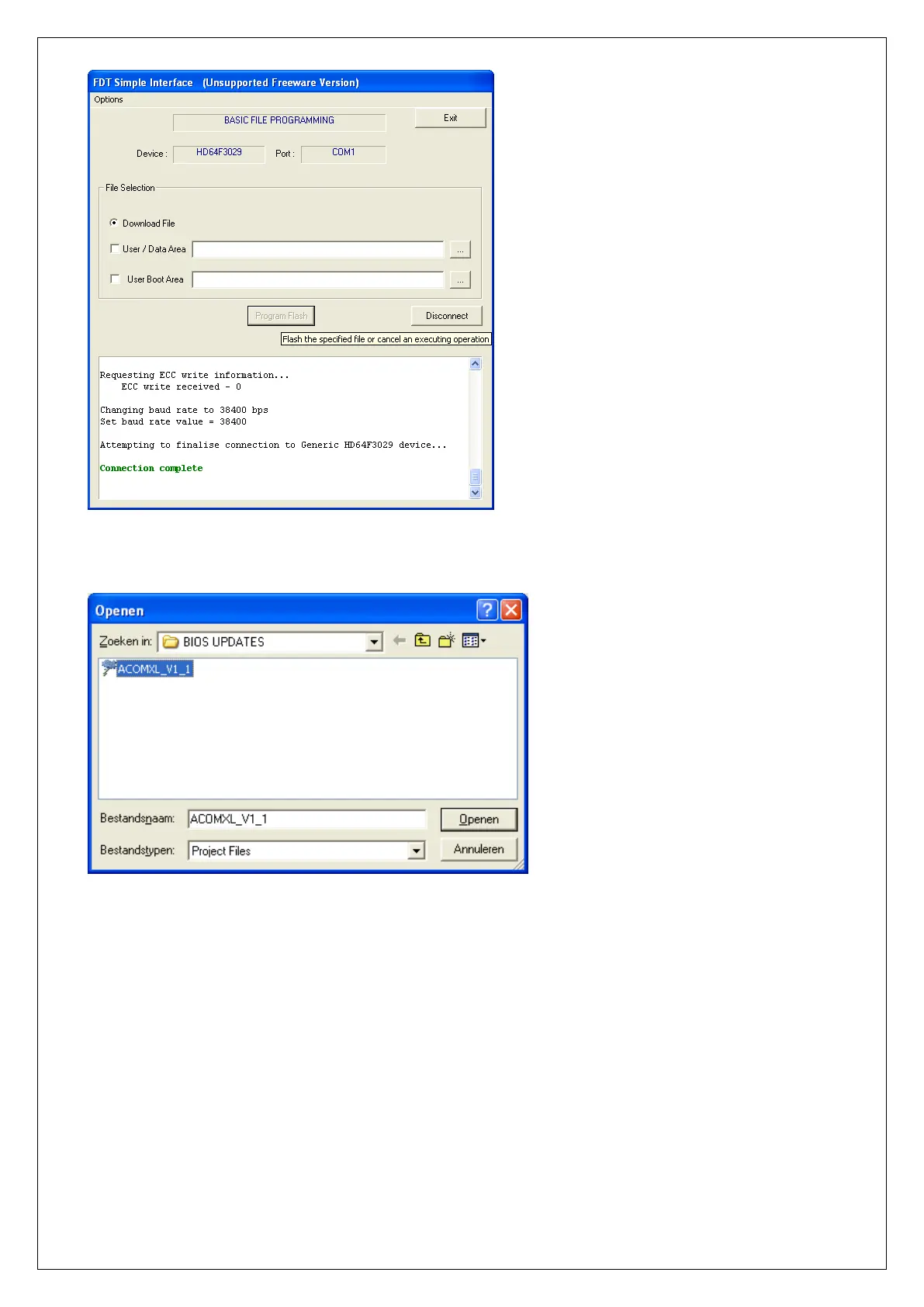

Select the User / Data Area option. In the box next to the User / Data Area option is still empty. Use the

explorer button to select the correct path and directory were the firmware file is saved on your computer.
