Ametek IPS-4 User Manual

5-10 | IPS-4 Dual Bench (UV / IR) Analyzer

NOTE
Actual layout may vary. Refer to customer-specific Final “As-Built”
drawings shipped with the analyzer.

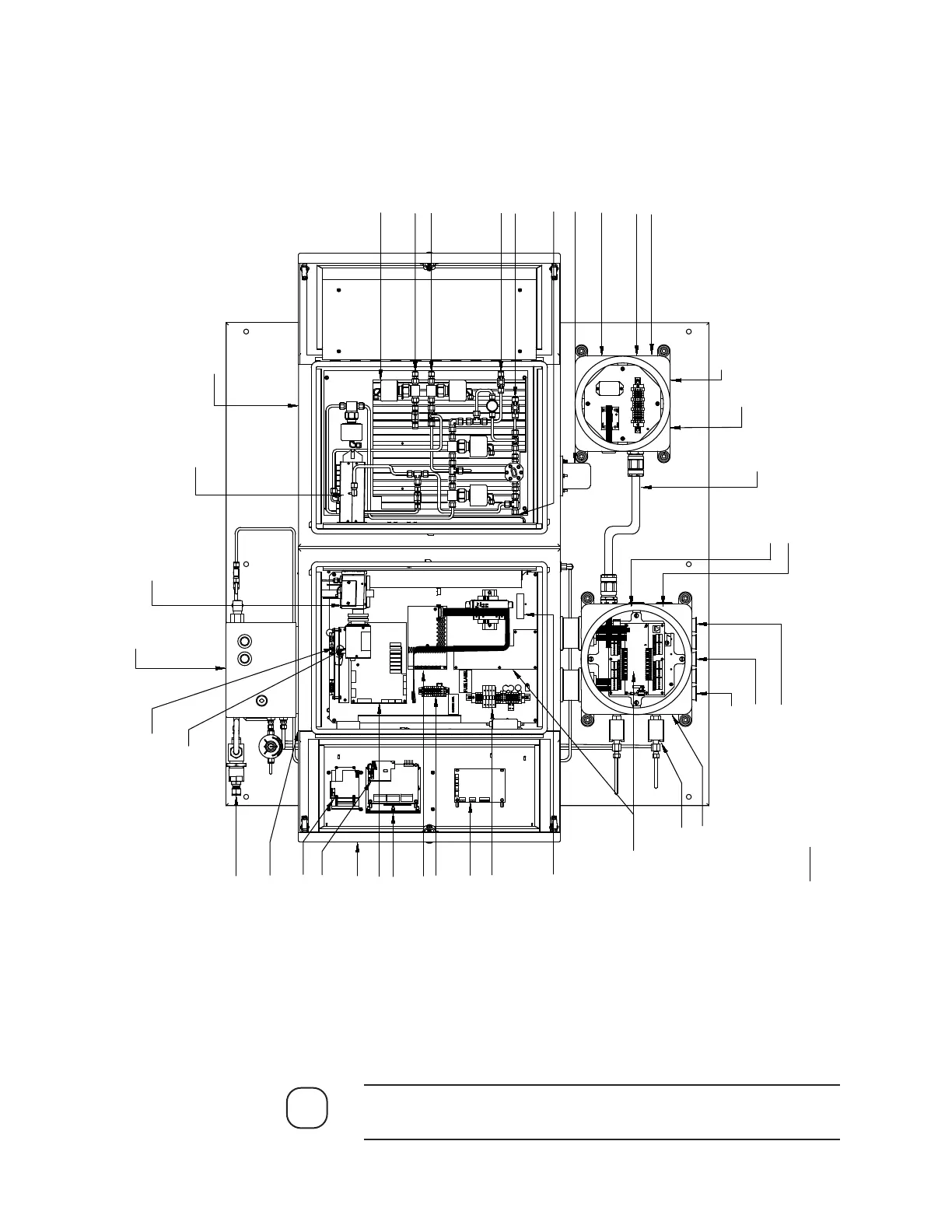

Figure 5-1.
Analyzer component
layout details.
MODCON SYSTEMS/SOCAR HAOR - AZERBAIJAN MODEL IPS-4 ANALYZER / FIELD UNIT ARRANGEMENT
B
REV.
WX-11062-3-3B
SAMPLE LINE DISCONNECT BOX
OVEN HEATER
SAMPLE OUT SAMPLE IN
OVEN ENCLOSURE
CELLS (APPLICATION SPECIFIC)
BENCH ASSEMBLY
PURGE UNIT
XENON LAMP PWB
XENON FLASH
LAMP ASSEMBLY
ELECTRONIC ENCLOSURE
DC TERMINAL ASSEMBLY
CUSTOMER
CONNECTIONS PWB
POWER SUPPLY
DETECTOR INTERFACE PWB
DISPLAY INTERFACE PWB
MCU PWB
RELAY PWB
ANALOG PWB
AC TERMINAL/
MAIN FUSES
PRESSURE SWITCHES
A1, INSTRUMENT AIR
C4, HEATED SAMPLE LINE RTD
C5, HEATED SAMPLE LINE RTD2
C3B, SAMPLE TRACE POWER TO HEAT TRACE JUNCTION BOX (HTJB)
P2, SAMPLE LINE POWER FEED
OVEN VENT
UV OPTICAL
CUSTOMER DISCONNECT BOX
ARMORED CABLE
C7, DISCRETE SIGNAL
C6, ANALOG SIGNAL
C2, HAG PROBE RTD SINGAL
C1, HAG PROBE POWER
P1, ANALYZER POWER
A2, PLANT N2
ASPIRATOR DRIVE
NOTES:
1. THE ANALYZER OVEN AND ELECTRONICS ENCLOSURES ARE 304 SS.
2. THE CUSTOMER SIGNAL DISCONNECT BOX AND SAMPLE LINE
DISCONNECT BOX ARE EPOXY PAINTED CAST ALUMINUM.
SPAN INLET
LOSS OF FLOW
SENSOR CONTROLLER
LOSS OF FLOW SENSOR
FV7 FV2
FV1FV3
FV8
2019/11/07
