User Web Interface | 7-15

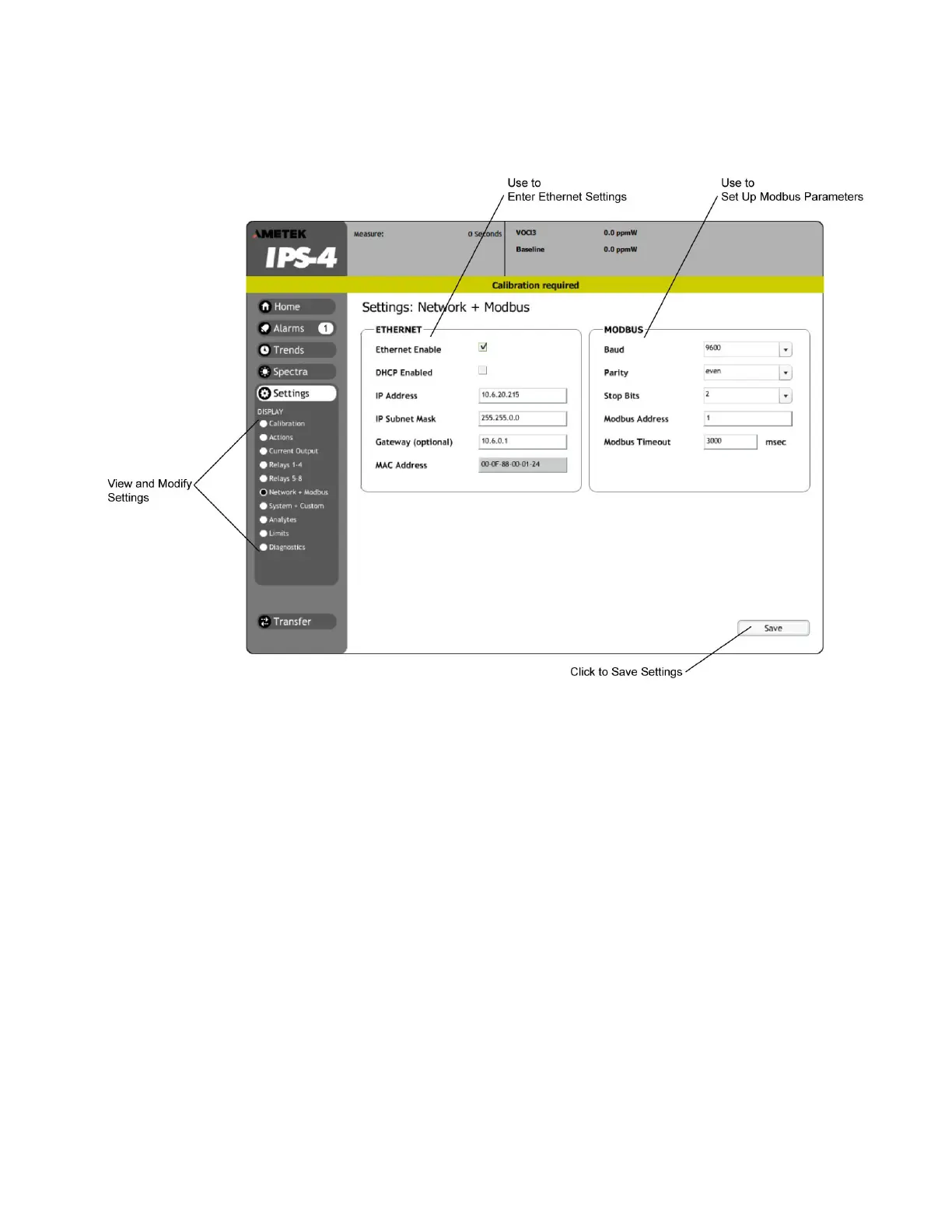

The NETWORK and MODBUS screen (Figure 7-11) allows the user to
enter Ethernet settings and set up modbus parameters.
Figure 7-11.
Settings Menu,
Screen.
Ethernet settings
Enable the analyzer system to communicate over an Ethernet network
for viewing analyzer and stream composition data, viewing analyzer
diagnostics, or backing up/restoring analyzer configuration settings.
Descriptions of these parameters are described under the “Ethernet
Network Screen” in Chapter 4.
Modbus screen
Set up Modbus parameters to enable the analyzer to communicate
with the Modbus master. Descriptions of these parameters are de-
scribed under the “Modbus Screen” in Chapter 4.
