User Web Interface
|
7-13
Current Output Screen
The
CURRENT OUTPUT
screen (Figure 7-9) displays current output
assignments and allows you to set up the parameters for each of the four
current outputs. Descriptions of these
parameters
are described under
“
Cur
rent Output Setup Screens” in Chapter 4.

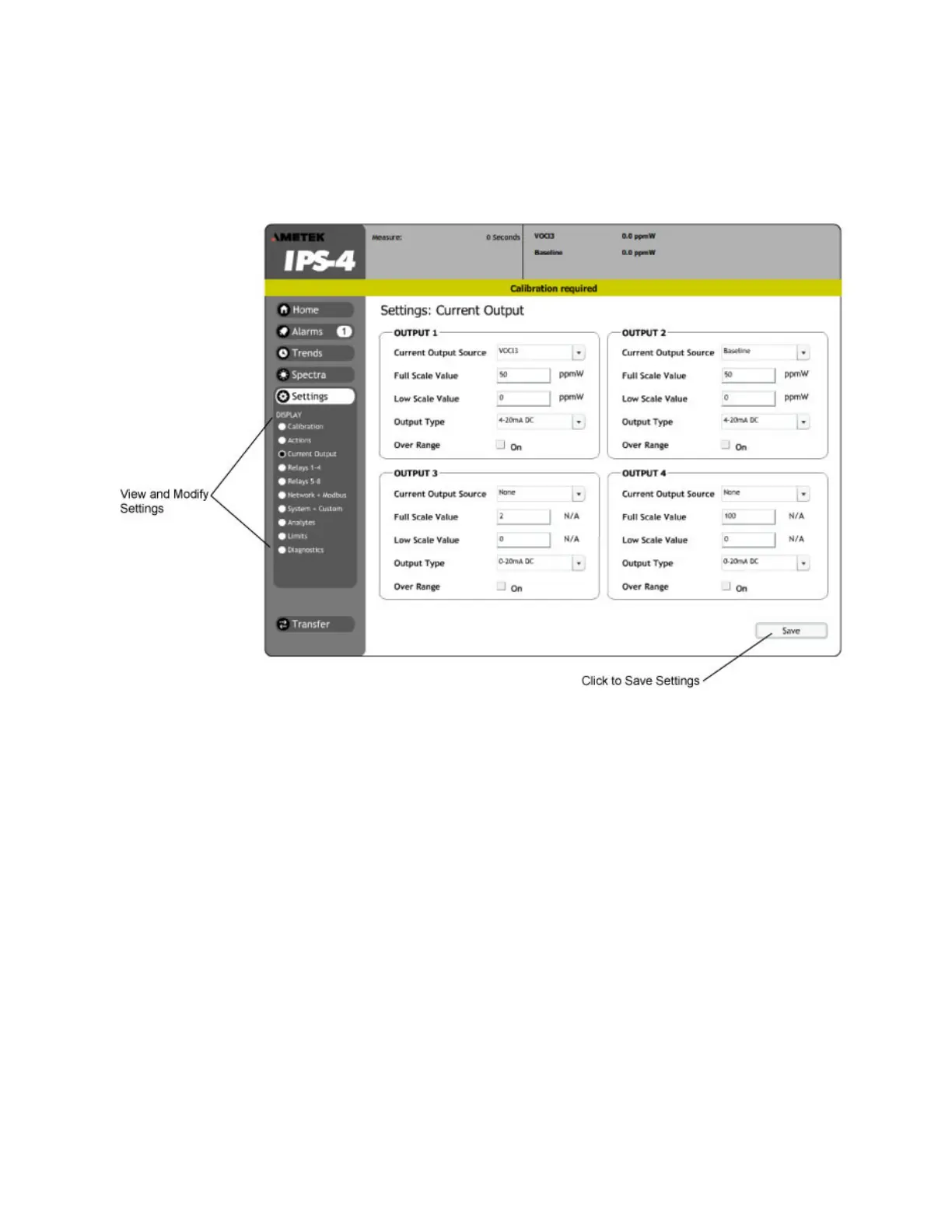

Figure 7-9.
Settings Menu,
Current Output Screen.
190
192
