7-18 | IPS-4 Dual Bench (UV / IR)
Analyzer
Limits Screen
The
LIMITS
screen (Figure 7-14) allows you to view and modify pressure
and temperature limits. Descriptions of these
parameters
are described
under “Setpoints Screens” in Chapter 4.

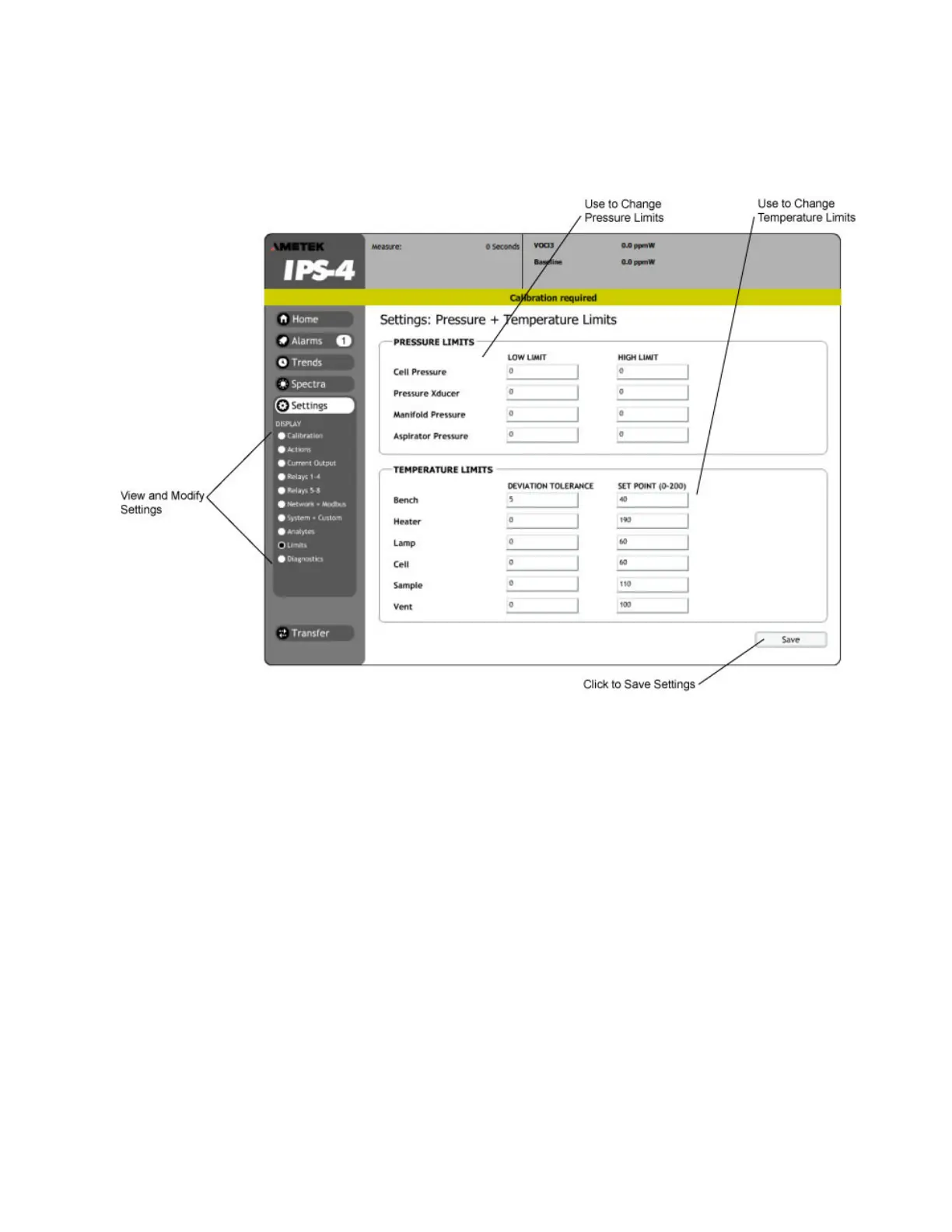

Figure 7-14.
Settings Menu,
Limits Screen.
195
