7-4 | IPS-4 Dual Bench (UV / IR)
Analyzer
HOME Menu Screen
The
HOME
screen (Figure 7-2) displays the current operational status
of the analyzer
. Descriptions of these
states
are described under “System
Status Messages (HOME Screen),” in Chapter 4.

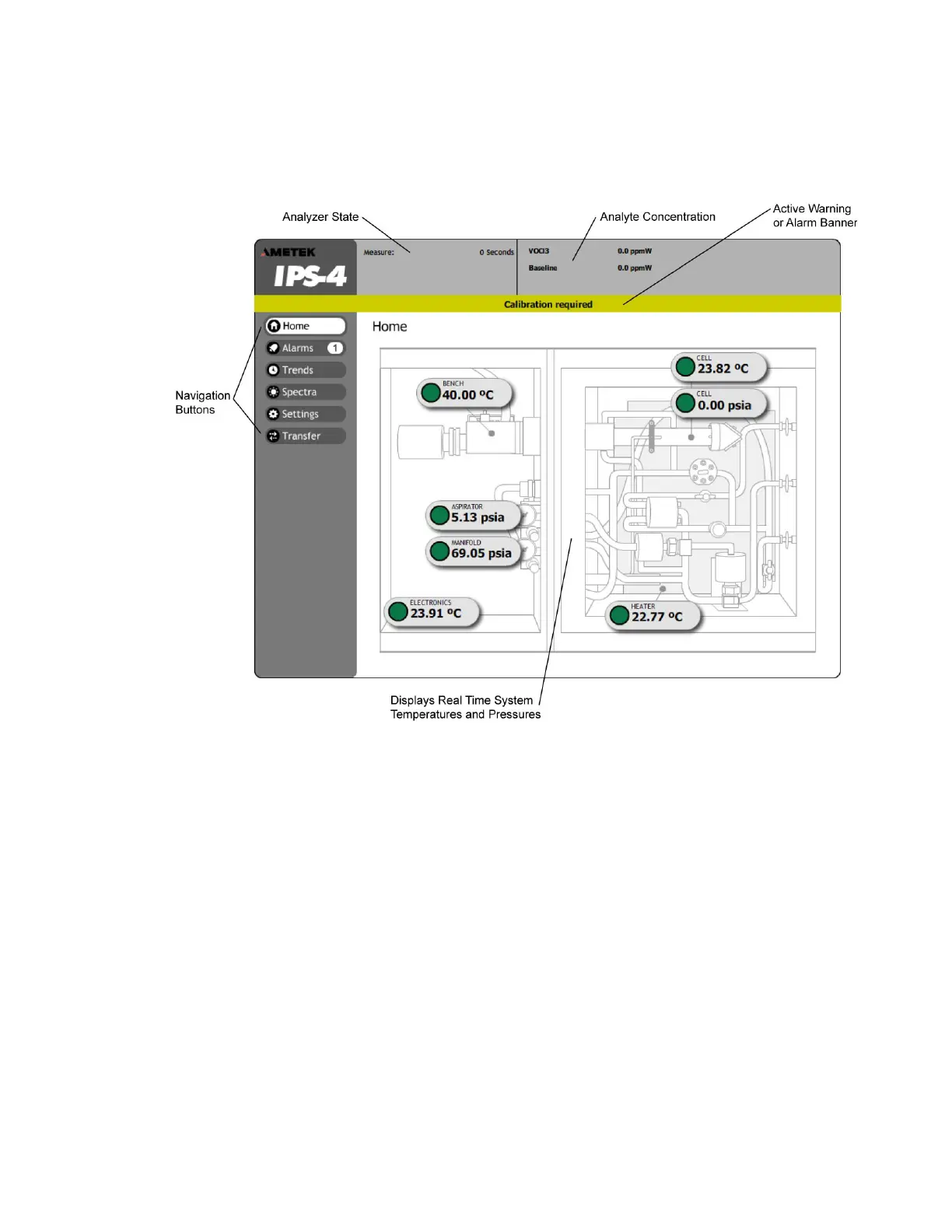

Figure 7-2.
Home Screen.
