Installation and Start-Up | 3-9

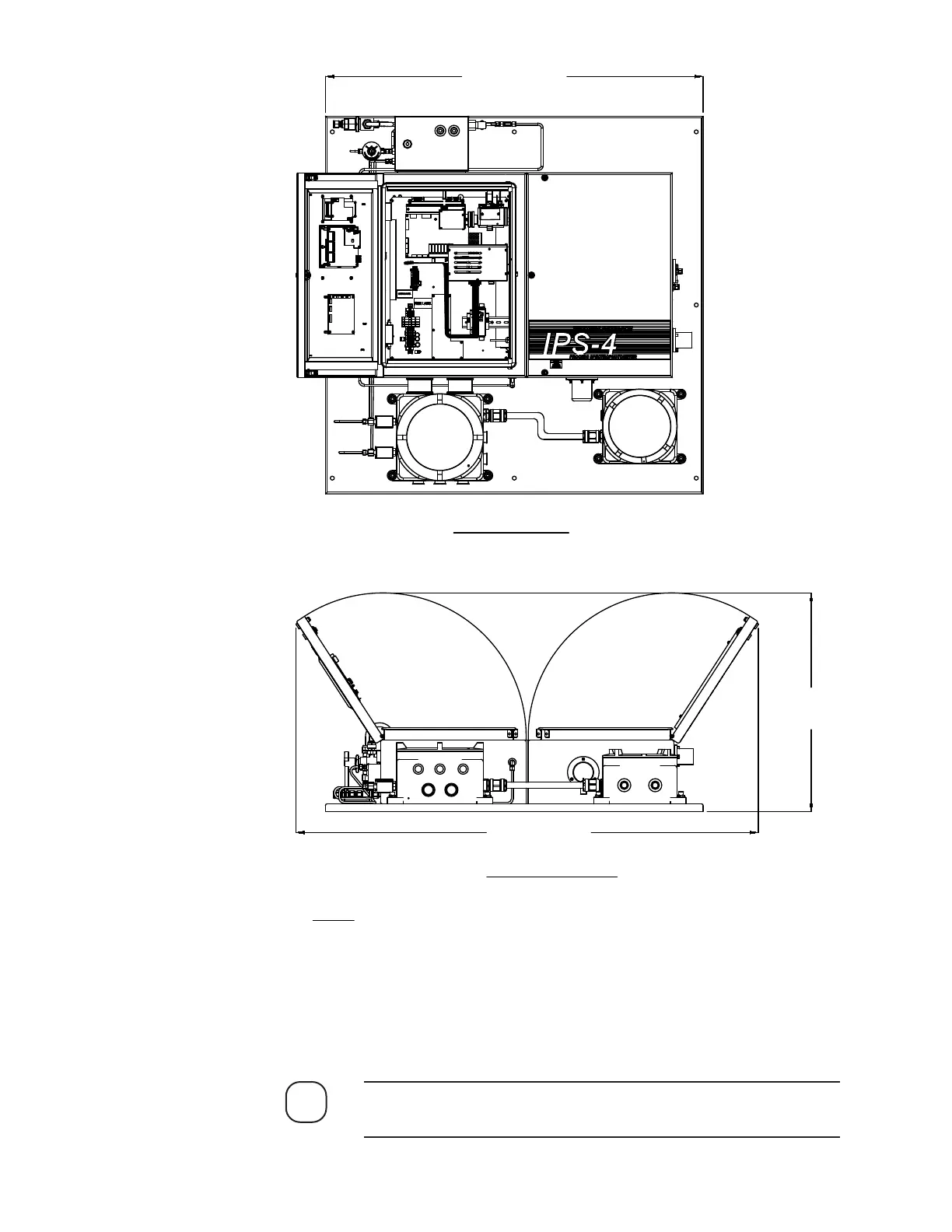

Figure 3-2b.
IPS-4 (Zone 1) mounting,
door clearance.
Actual layout may vary. Refer to customer-specific Final “As-Built”
drawings shipped with the analyzer.

NOTE
MODCON SYSTEMS/SOCAR HAOR - AZERBAIJAN
MODEL IPS-4 ANALYZER / FIELD UNIT INSTALLATION
A
REV.
WX-11062-3-3A
2019/05/01
FRONT VIEW
BOTTOM VIEW
58.74" [1491.9mm]
27.81"
[706.3mm]
NOTES:
1. XXX DIMENSION ARE IN INCHES, [xxx] DIMENSIONS ARE mm.
2. THE ANALYZER OVEN AND ELECTRONICS ENCLOSURES ARE 316 SS.
3. THE CUSTOMER SIGNAL DISCONNECT BOX AND SAMPLE LINE
DISCONNECT BOX ARE EPOXY PAINTED CAST ALUMINUM.
48.00" [1219.2mm]
