Existing Calibration Information List Box
The Existing Calibration Information list box shows the various sweep setting types for the
active calibration and compares this information to the current sweep settings. It also
displays the Cal Status information and the associated level of accuracy. Interpolation is
available in all Anritsu VNA Masters and in the S412E LMR Master, but Flex calibration is
available only in the MS20xxC models.
Additional Calibration Considerations
In Vector Network Analyzer mode, refer to section “Calibration Considerations” on page 4-16.
In Vector Voltmeter mode, refer to Section 11-6 “Calibration Correction” on page 11-6.

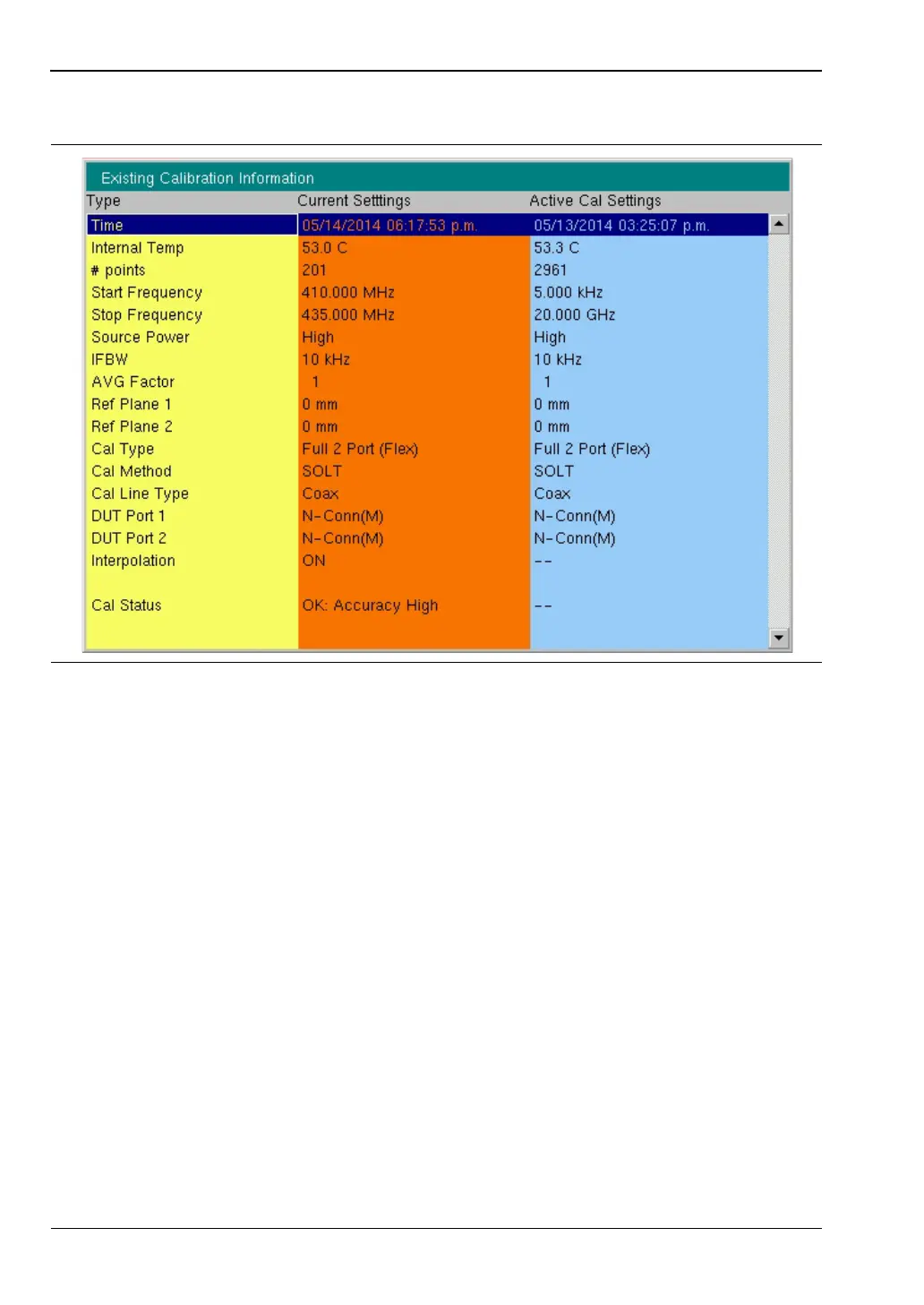

Figure 6-27. Existing Calibration Information List Box
