Anritsu MS2024B - Insertion Loss in Display Type Single

Field Measurements 5-4 Graph Type Selector List Box
Vector Network Analyzer MG PN: 10580-00289 Rev. K 5-5
• Log Magnitude/2 (1-Port Cable Loss)
• Linear Polar
• Log Polar
• Real Impedance
• Imaginary Impedance
Insertion Loss in Display Type Single
The screen-captured measurements that are shown in this measurement guide are examples
and may not match any display on your instrument.

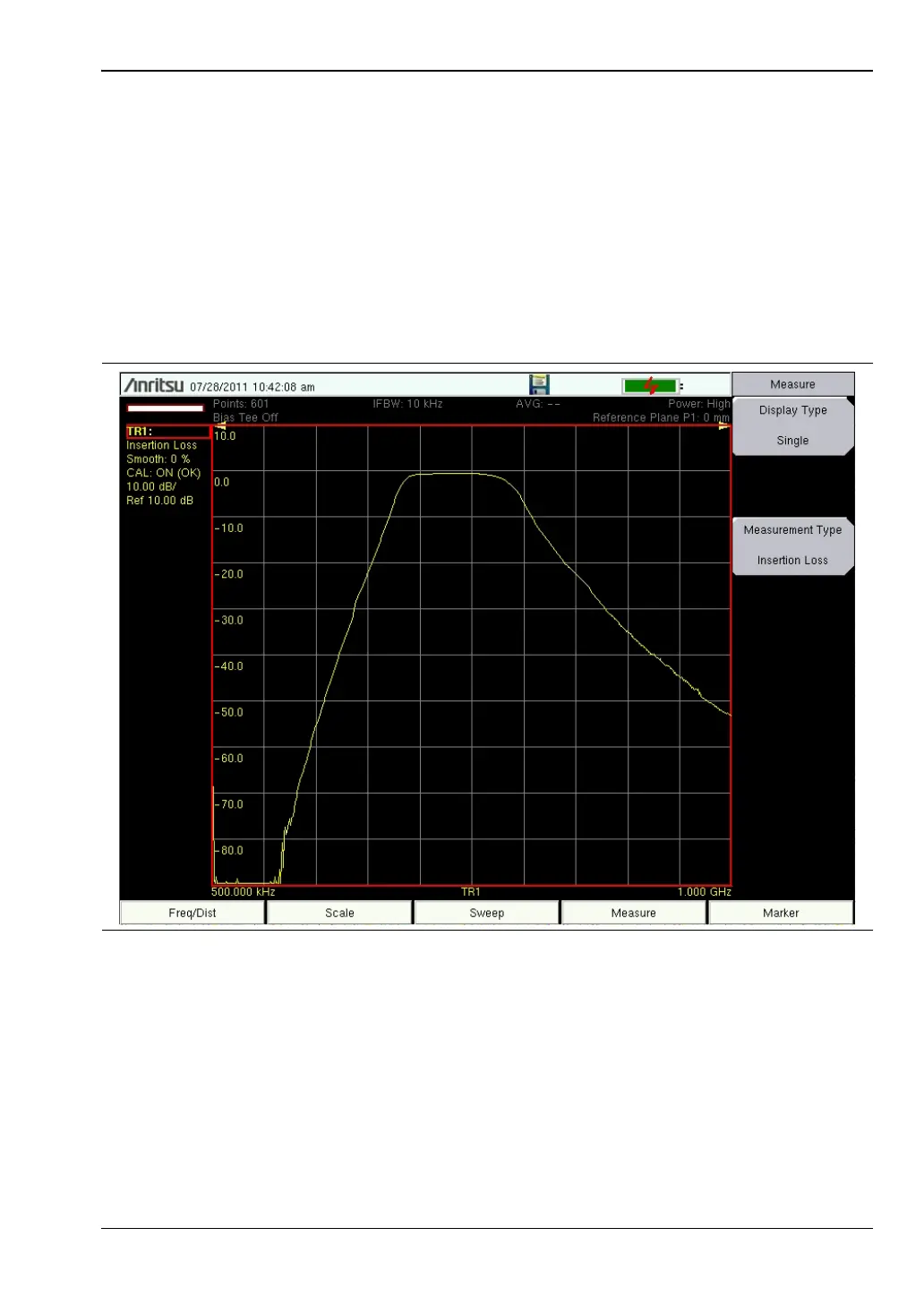

Figure 5-1. Display Type Single – Insertion Loss
