VNA View Menus 6-4 Calibration Menus
Vector Network Analyzer MG PN: 10580-00289 Rev. K 6-31
DUT Connector Selector List Box for Coax
This list box (Figure 6-30) is opened by the Coax DUT Port # soft key. In this example, the
Cal Type is Full 2 Port, and the Cal Method is SOLT. Note that the Cal Kit data includes
capacitance coefficients for the Open and inductance coefficients for the Short. Inductance
values are provided in all instruments with VNA mode.
This feature is used by all Anritsu VNA Masters and by the S412E LMR Master.

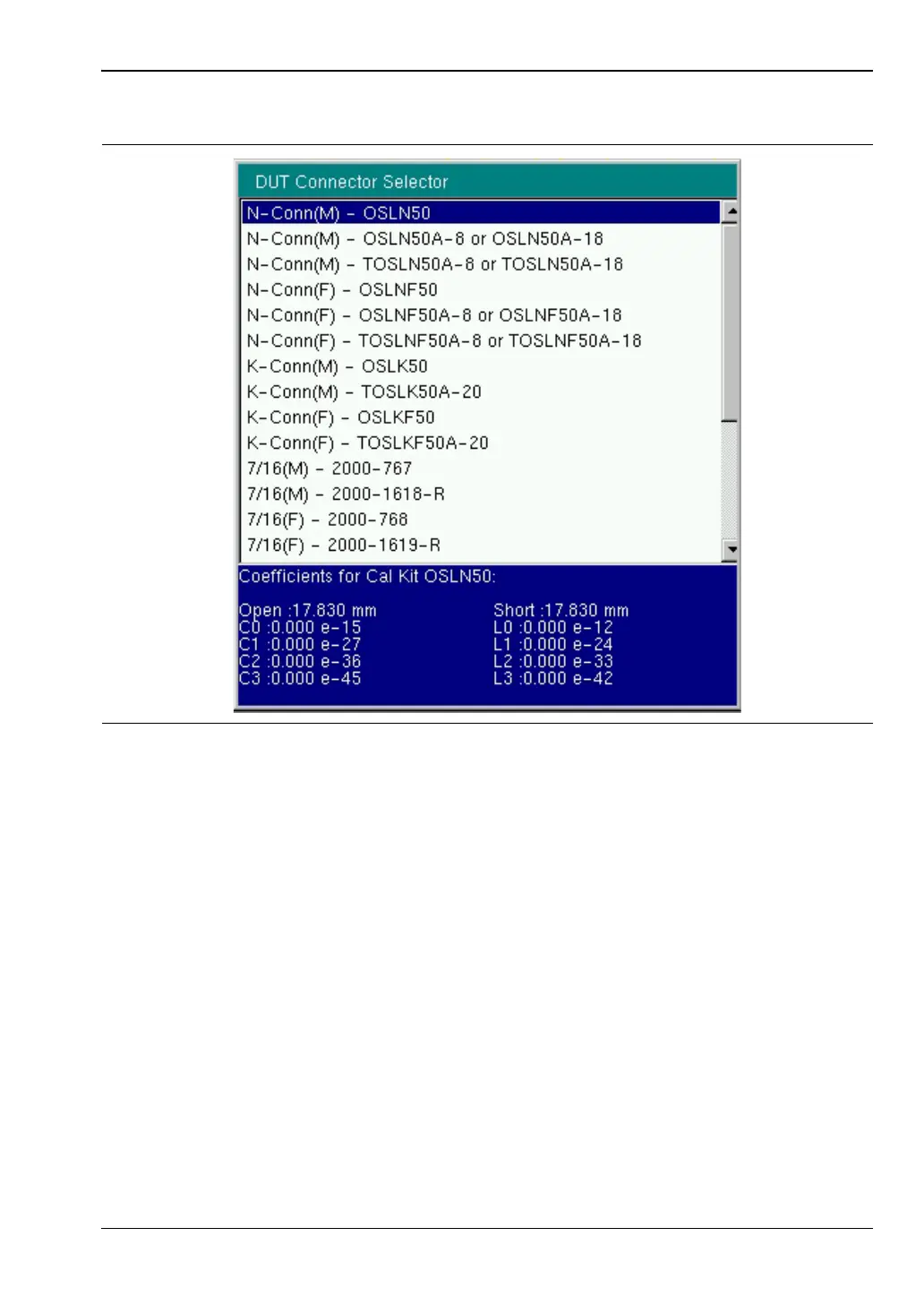

Figure 6-30. DUT Connector Selector List Box for Cable
