Field Measurements 5-4 Graph Type Selector List Box
Vector Network Analyzer MG PN: 10580-00289 Rev. K 5-7
Insertion Loss and Return Loss in Display Type Overlay
The example in this figure may not match the display on your instrument.

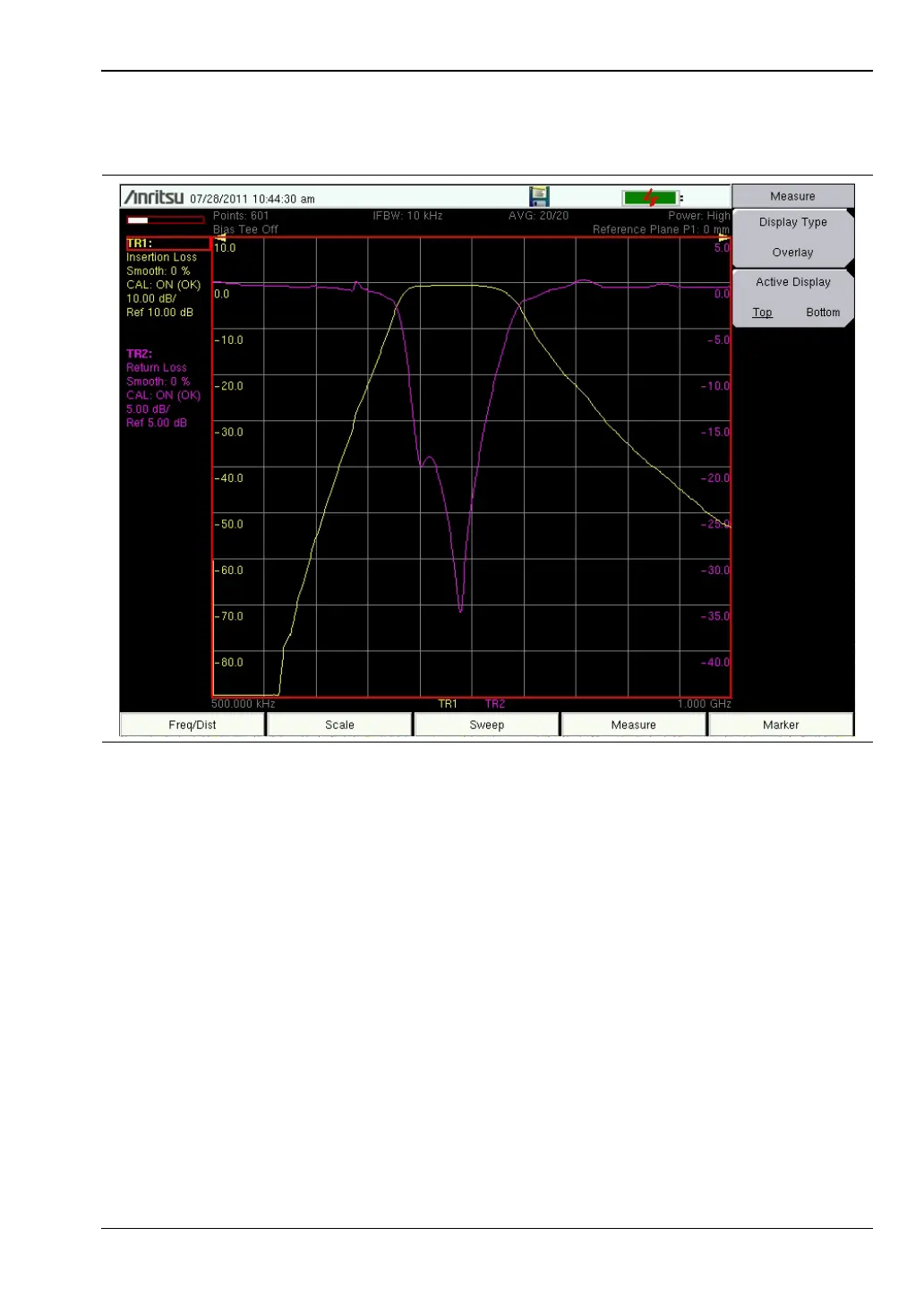

Figure 5-3. Display Type Overlay – Insertion Loss and Return Loss
