10-7 Bias Tee Menus (MS20xxB and S412E in VNA View)
In VNA Measurements mode (as opposed to Field Measurements mode), the Bias Tee Setup
soft key is in the Configure Ports menu. The Bias Tee Setup menu and the Bias Tee menu
have the same keys as in the Field Measurements mode.
To access the Bias Tee menu in VNA Measurements mode, press the Sweep function hard
key (or press the Shift key then the Sweep (3) key). Press the Configure Ports soft key, and
then press the Bias Tee Setup soft key to open the Bias Tee Setup menu. Press the Bias Tee
soft key to open the Bias Tee menu. Then select On or Off by pressing the appropriate soft
key, or press the Back soft key to exit the menu without changing the setting.
For additional information about the Application Options menu, refer to “Application Options
Menu” on page 7-19. For additional information about the Sweep menu, refer to “Sweep Menu
— MS20xxB and S412E” on page 6-54.

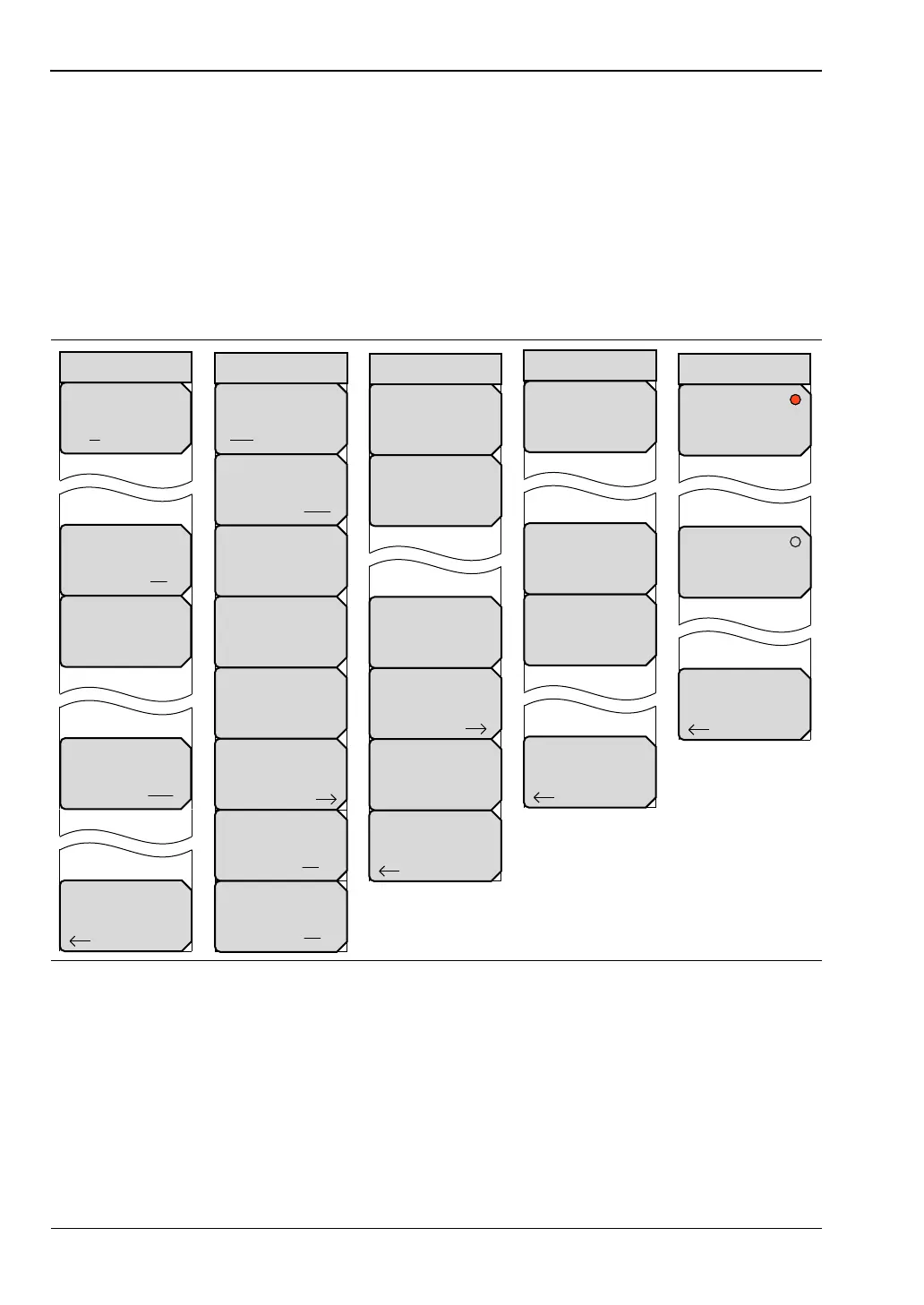

Figure 10-12.Bias Tee Menu Group — VNA Measurements – MS20xxB and S412E
Back
Bias Tee
Off
Int Current Limit P2
## mA
Int Voltage P2
##.# V
Bias Tee Setup
Back
Off
On
Bias Tee
Units
m ft
Trace Label
On Off
Meas Gain Range
Auto
Meas Menu
Field VNA
Back
Options
Data Points
##
Sweep Type
Single Cont
Run/Hold
Run Hold
Sweep
RF Pwr in Hold
On Off
Dithering
On Off
Configure Ports
IFBW
## Hz
Sweep Averaging
#
Back
Bias Tee Setup
Port 1 Ref Plane Length
# mm
Auto Reference
Plane Extension
Source Power
High
Propagation Velocity
#
Configure Ports
